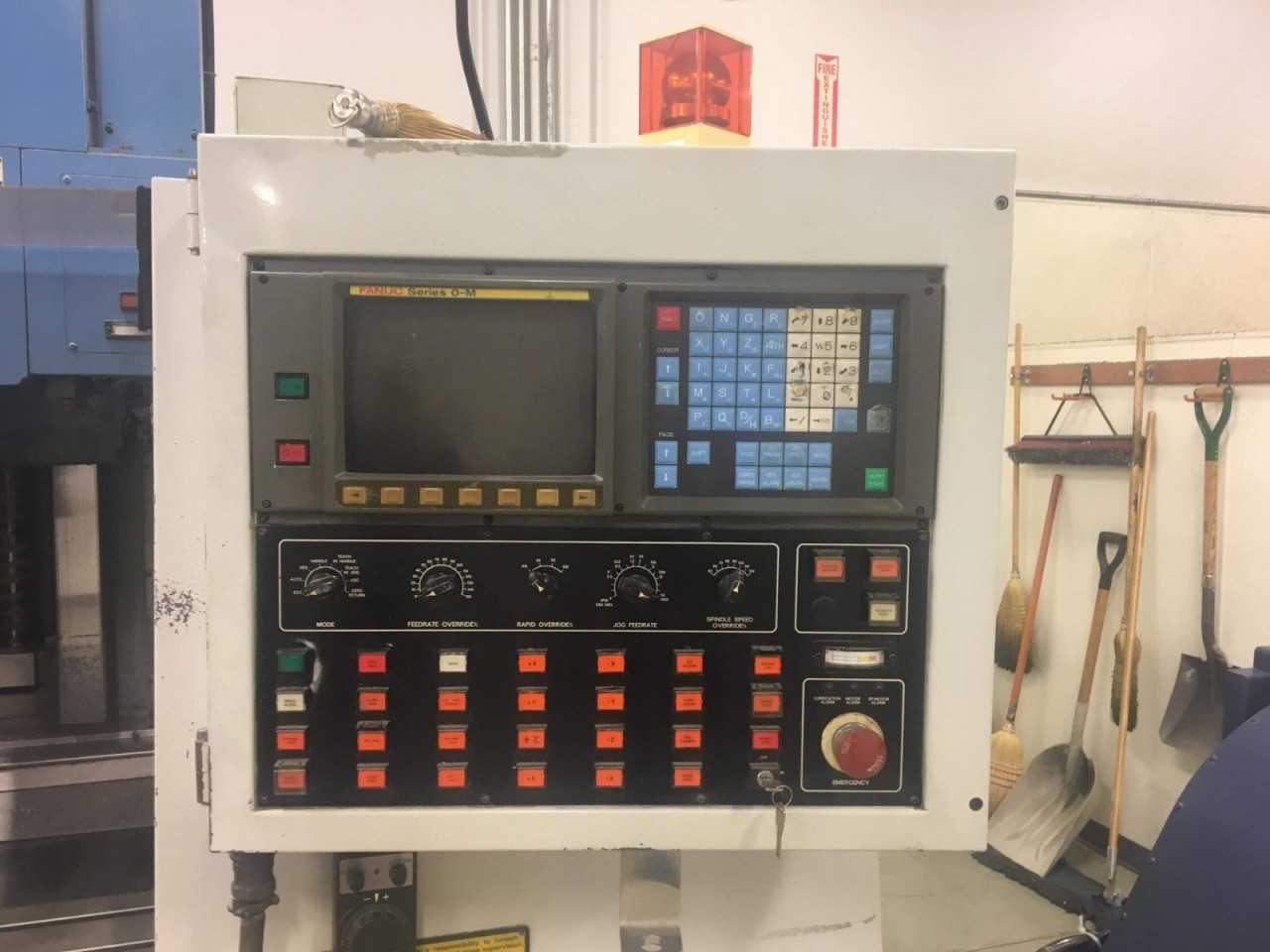

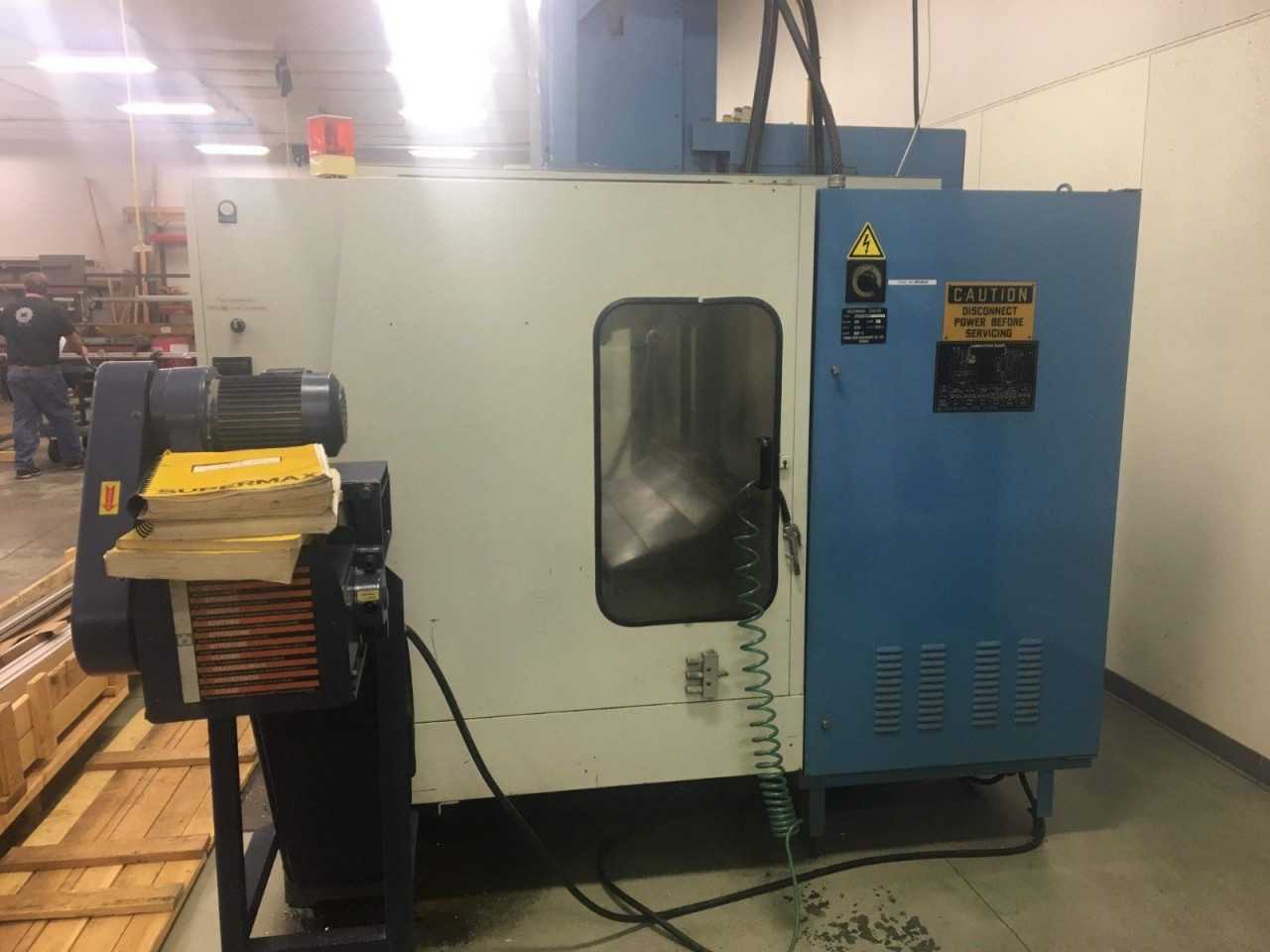

Name | 1995 Supermax Model Max 1 Rebel CNC Vertical Machining Center (Fanuc 0-M) |
---|---|
Aucto ID | 118 |
Manufacturer | Supermax |
Model | Rebel 1 |
Additional Info | Table Size 33.1"x16.5" Table Load Capacity 770 lbs Dist. Between Spdl & Table Top 3.9"-22.1" Dist. Between Spdl Center & Column Front 16.1" X-Axis Travel 25.6" Y-Axis Travel 16.1" Z-Axis Travel 24.2" Spindle Speed 8,000 RPM Spindle Taper CAT 40 Spindle Motor 30 Min. / Cont. 15HP Tool Magazine Capacity 20 Position ATC Rapid Traverse X,Y/Z 630/394 IPM Machine Dimensions LxWxH 86.1"x83.0"x107.0" Machine Weight 8400 lbs |
