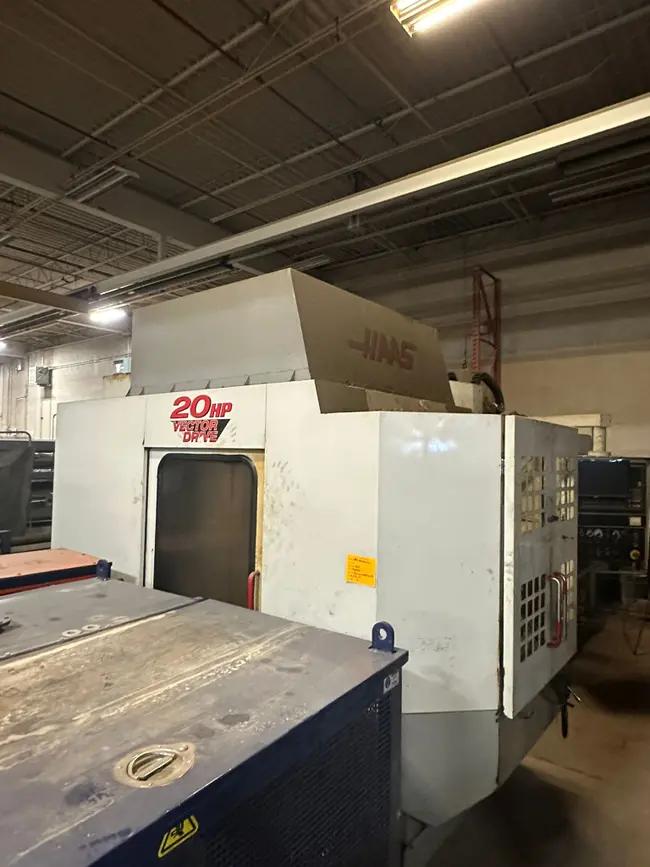

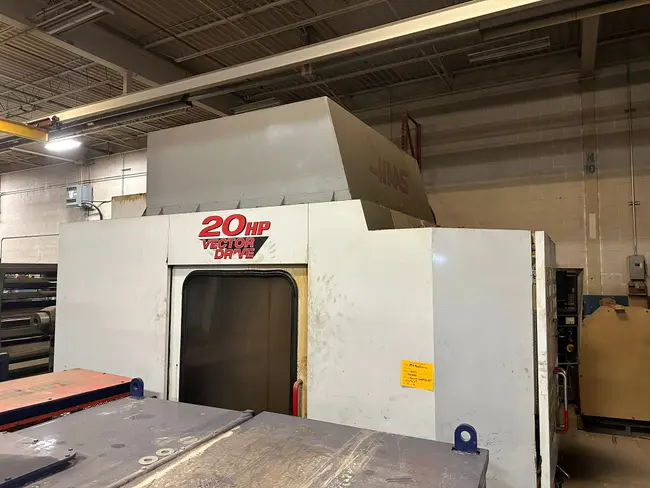

1998 HAAS HS1RP HORIZONTAL MACHINING CENTER
9f07586a-2fa1-443e-aac3-7f8812314dd4
Buy Now
buy now
Verified Seller
Aucto Delivery
1 In Stock
active
More Assets From This Seller
| Name | 1998 HAAS HS1RP HORIZONTAL MACHINING CENTER |
|---|---|
| Aucto ID | 75898 |
| Manufacturer | Haas |
| Model | HS1RP |
| Year of Manufacture | 1998 |
| Condition | 5 (Fair) |
| Serial / VIN Number | 50582 |
| Additional Info | 1998 HAAS HS1RP CNC HORIZONTAL MACHINING CENTER
20HP VECTOR DRIVE
710IPM BRUSHLESS SERVOS

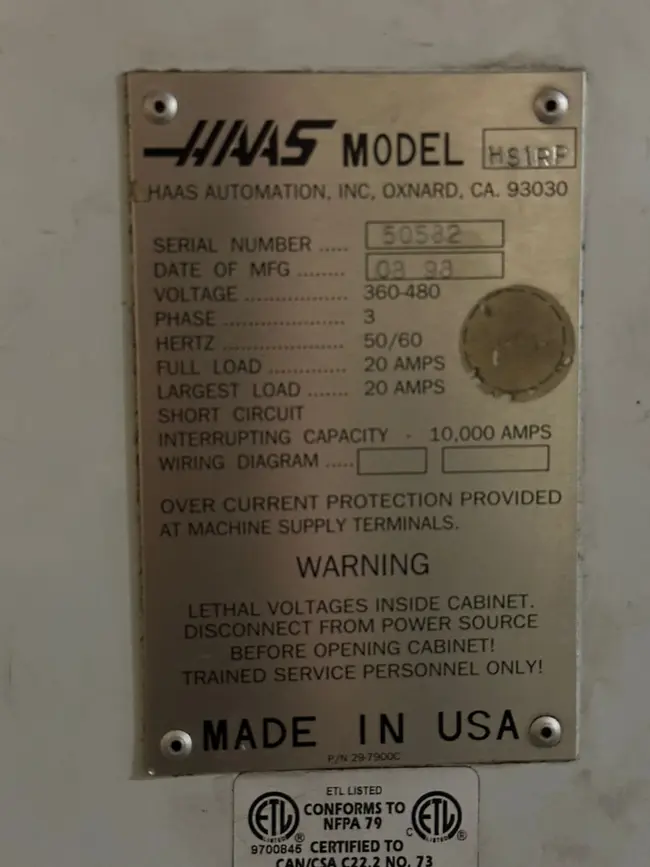

HAAS CNC CONTROL CONSOLE, 360/480V, 3PH, 50/60HZ, 20A
INTERRUPTING CAPACITY 10000A
X AXIS TRAVEL: 24", Y AXIS TRAVEL: 20", Z AXIS TRAVEL: 22"
RAPID RATE X AXIS: 710 IPM
RAPID RATE Y AXIS: 710 IPM
RAPID RATE Z AXIS: 710 IPM
NUMBER OF PALLETS: 2, PALLET SIZE: 15.75" X 15.75"
MAX PALLET LOAD: 3000 LBS
SPINDLE SPEED: 7500 RPM
SPINDLE MOTOR: 20 HP
SPINDLE TAPER: 40 CT
TOOL CHANGER: 24 ATC
MACHINE WEIGHT: 16000 LBS
MACHINE DIMENSIONS: 11' X 7' 6" X 9'
MACHINE ISSUE: A SENSOR FOR THE ROTARY TABLE IS INTERMITTENT. |
