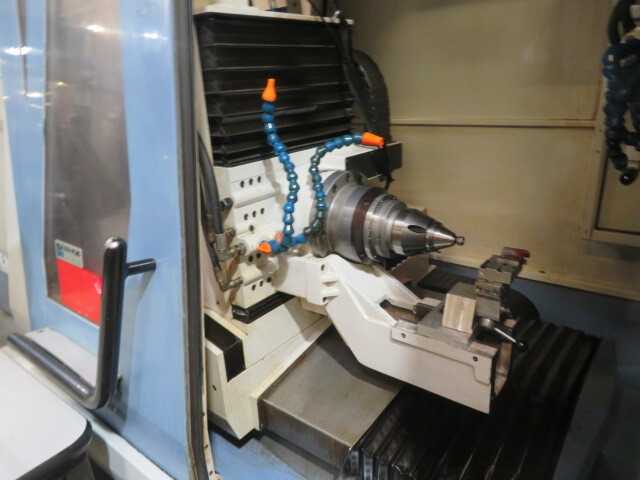

Name | ANCA CNC Universal Grinder Model TX7+ New 2005, S/N 600257 |
---|---|
Aucto ID | 23 |
Manufacturer | Ana |
Model | TX 7 |
Additional Info | SPECIFICATIONS:
Part Capacity:
- Diameter - Maximum.....................................................12"
- Length - Maximum.......................................................16"
- Weight - Maximum...................................................55 Lbs.
Grinding Spindle:
- Speed - Maximum.................................................10,000 RPM
- Power - Peak.........................................................49 HP
- Taper........................................................BIG-PLUS BT40
Grinding Wheel:
- Diameter - Maximum......................................................8"
- Bore....................................................................2"
Xchanger Positions........................................................26
Mechanical Axes:
- X-Axis...............................................................21.9"
- Y-Axis...............................................................16.4"
- Z-Axis...............................................................10.1"
- C-Axis............................................................264 Deg.
- A-Axis............................................................360 Deg.
Resolution:
- Position Feedback (X,Y,Z).......................................0.0000039"
- Position Feedback (C,A)........................................0.0001 Deg.
- Programming (X,Y,Z).............................................0.0000039"
- Programming (C,A)..............................................0.0001 Deg.
Dimensions:
- Coolant Filtration System - Approximate................118" x 59" x 88"(H)
Weights:
- Coolant Filtration System - Approximate.........................4,000 Lbs.
EQUIPPED WITH:
Anca 5DX Control
Ebbco Paper Coolant Filtration System
Mist Collector
PLEASE UNDERSTAND THAT EVERYTHING IS SOLD “AS IS, WHERE IS”…PLEASE READ THE AUCTION CONTRACT. WE ENCOURAGE MAKING AN INSPECTION. PLEASE CALL Rick 310-487-3800 |
