| Name | AXIOM PRECISION ICONIC 6 WOOD CNC ROUTER |
|---|---|
| Aucto ID | 75889 |
| Manufacturer | AXIOM PRECISION |
| Model | ICONIC 6 |
| Condition | 7 (Excellent) |
| Serial / VIN Number | 2109-8-004851-LM |

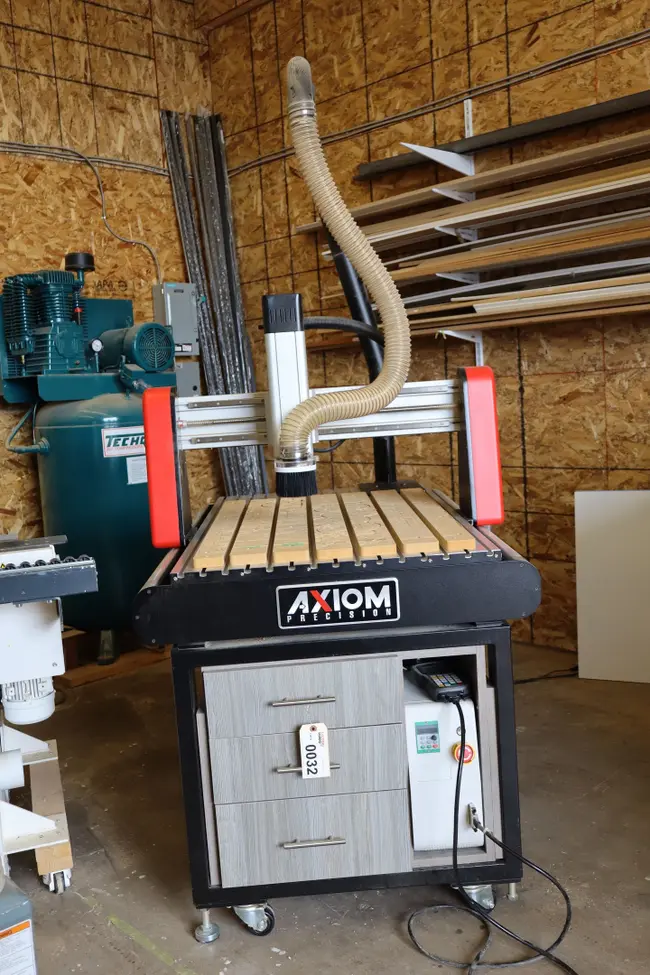

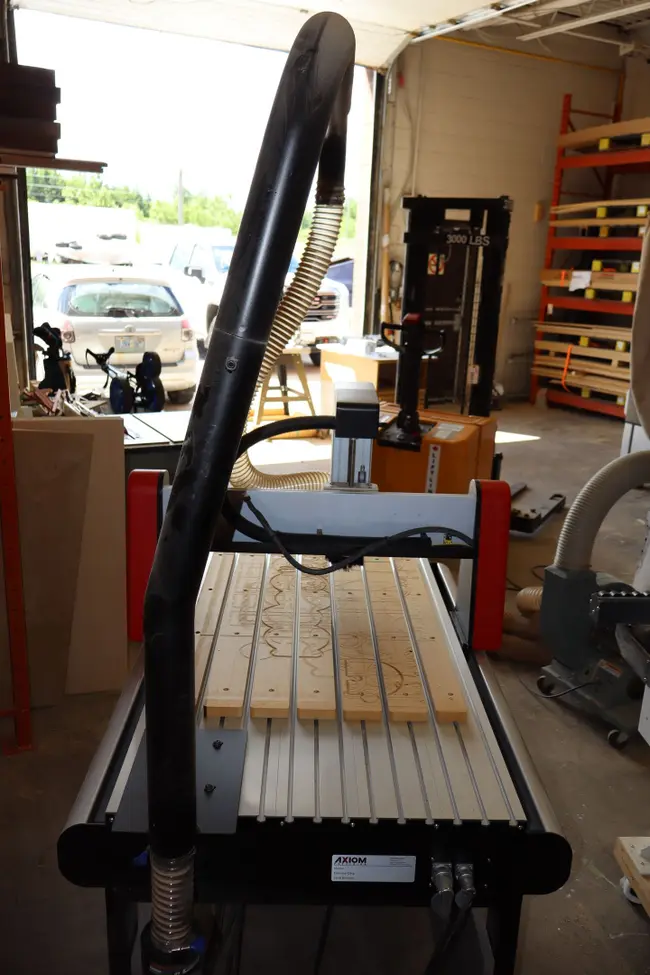

| Additional Info | AXIOM PRECISION ICONIC 6 WOOD CNC ROUTER
BED DIMENSIONS: 50" LONG X 28" WIDE
WORKING TABLE DIMENSIONS: 36" LONG X 24"
13A, 115V, 50-60 HZ, 1 PH
WITH RICHAUTO-AUTO NOW-B11E CONTROLLER, B1XDSP
X AXIS TRAVEL: 24" (610MM)
Y AXIS TRAVEL: ICONIC6 = 36" (915MM)
Z AXIS TRAVEL: 3.937" (100MM)
ELECTRO SPINDLE: 800W (1HP)
SPINDLE SPEED: 0-24,000 RPM
RAPID FEED RATE: 150 IPM (3.81 MPM)
PRECISION LINEAR GUIDEWAY: X/Y/Z, PRECISION BALL SCREW : X/Y/Z, BALL SCREW DIAMETER: 16MM
POSITIONAL ACCURACY: +/- .00589"" (0.15MM)
GANTRY CLEARANCE: 4 1/2"" (114.0MM)
UNIT IS IN EXCELLENT RUNNING CONDITION. VIDEO OF THE UNIT RUNNING CAN BE PROVIDED. |
