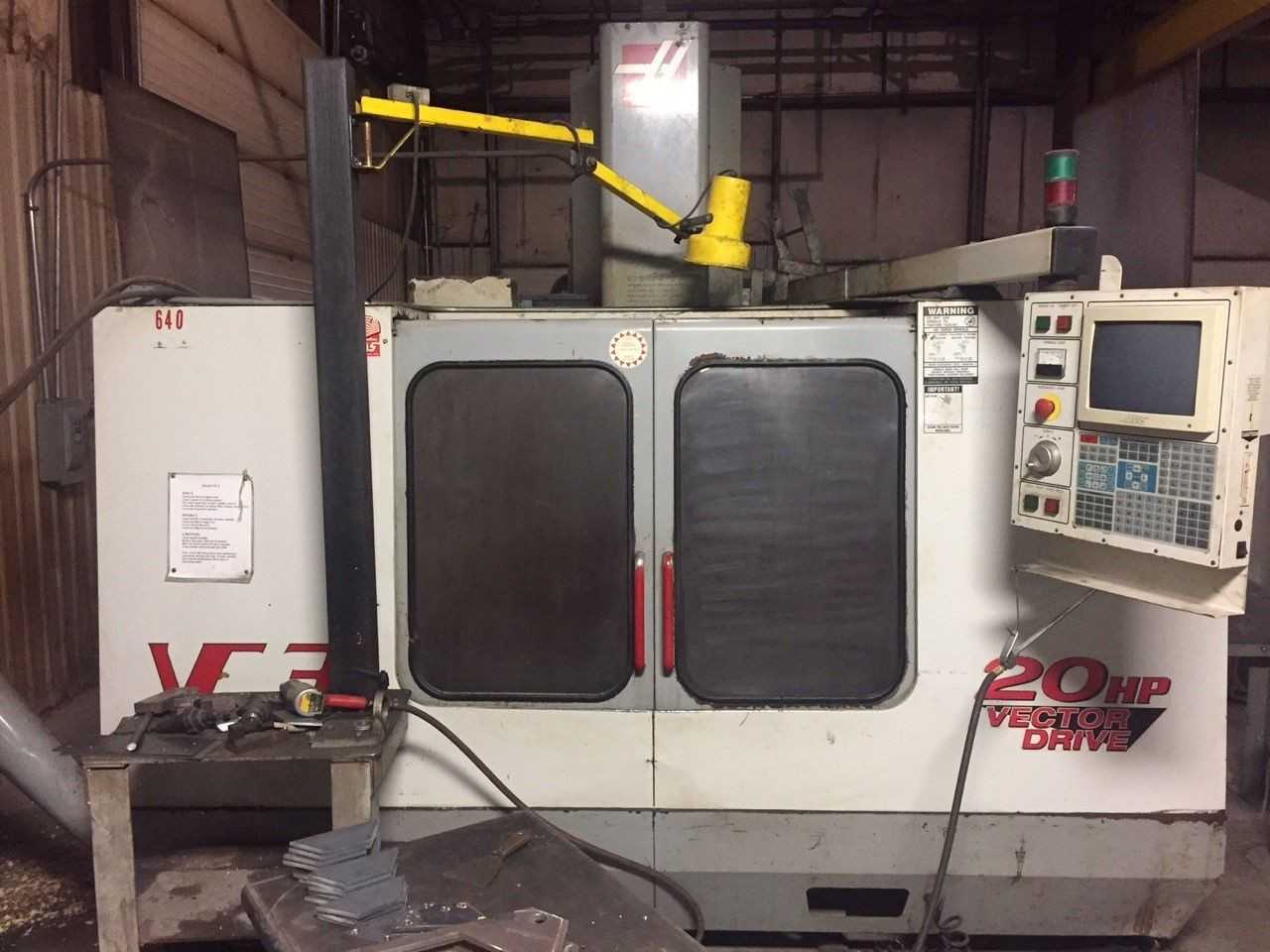

Name | Haas VF-3 CNC Vertical Machining Center, Year 1999 |
---|---|
Aucto ID | 113 |
Manufacturer | Haas |
Model | VF-3 |

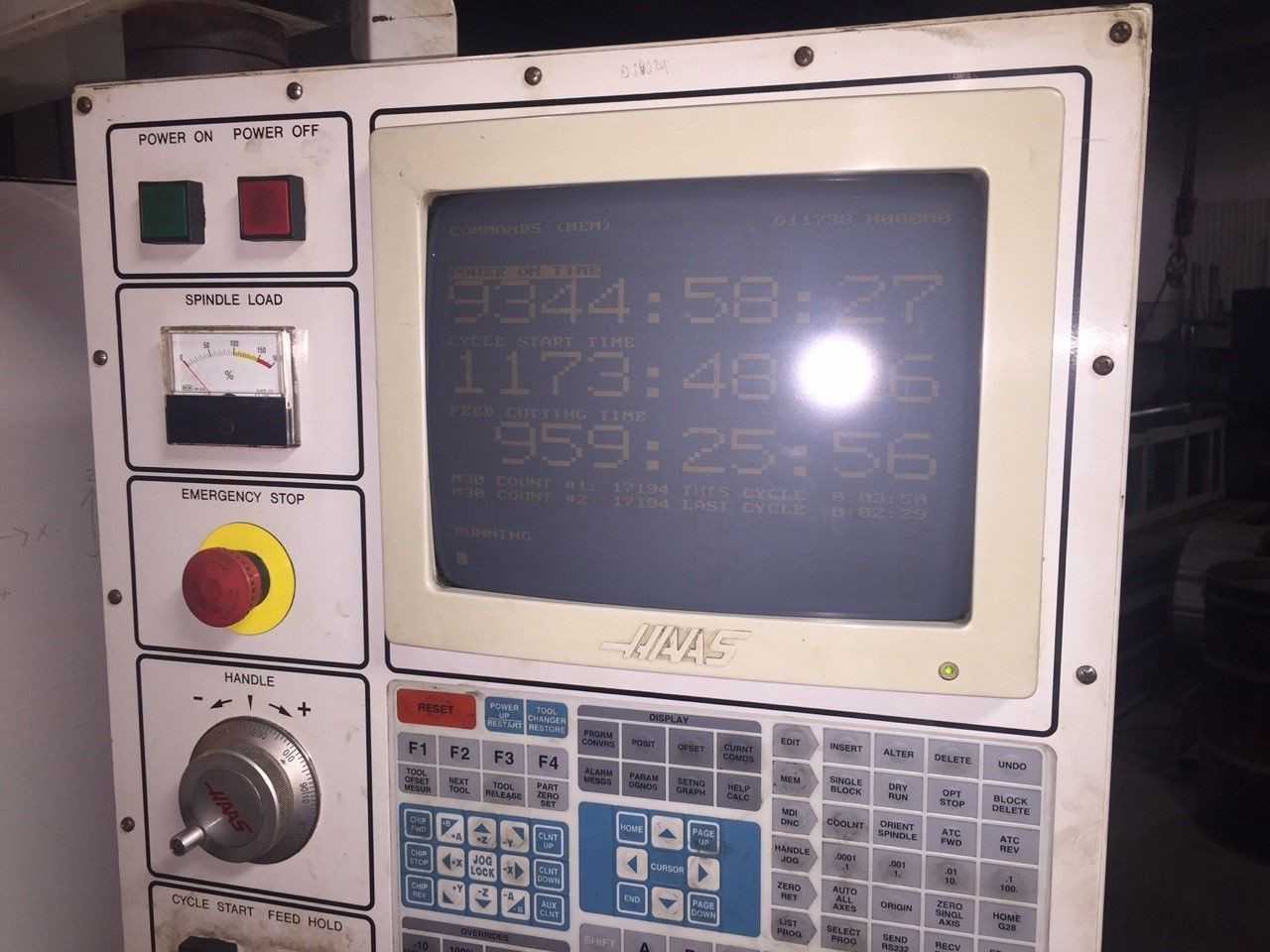

Additional Info | X: 40 " Y: 20 " Z: 25 " Power: 20 hp RPM: 7500 rpm #ATC: 32 Table- W: 18 " Table- L: 48 " Taper: CT 40 # Axis: 3 Control: CNC (HAAS) 1999 Haas VF-3B CNC Vertical Machining Center Specifications: Control ..Haas Table Size:48" x 18" Max Table Load:3,500 lbs X-Axis Travel:40" Y-Axis Travel:20" Z-Axis Travel:25" Spindle Nose to Table Top: 4"– 29" Spindle Taper: CT 40 Spindle Motor: 20 HP Spindle Speed: 7,500 RPM Tool Changer: 32 Position Machine Weight: 12,500 lbs Equipped With: Haas 32-Bit CNC Control Thru-Spindle Coolant (300 PSI) 2-Speed Gear Box Programmable Coolant Quick Code 1MB Expanded Memory Chip Auger 32 Position ATC Option This machine is currently under power and available for inspection. Few issues that are in the process of getting fixed. Tool changer isn’t currently working. |
