Name | Moore Model 3 jig bore |
---|---|
Aucto ID | 3 |
Manufacturer | Moore |
Model | 3 |
Additional Info | PLEASE UNDERSTAND THAT EVERYTHING IS SOLD "AS IS, WHERE IS". WE RECOMMEND MAKING AN INSPECTION. PLEASE CALL RICK SCHOTTS AT 310-487-3800.
Moore Model: #3 Jig Bore Serial Number: B1299
Main Unit Approx Weight: 3500.00 lbs
Main Unit Dimensions (in inches): Length: 51.00" Width: 68.00" Height: 92.00"
Specs:
Table Size: 11"x24"
Longitudinal Table Travel: 18"
Cross Table Travel: 11"
Quill Travel: 5"
Vertical Adjustment of Quill Housing: 11 15/16"
Spindle to Table Distance: 3 7/8" to 20 13/16"
Max Spindle Speed: 2500 RPM
Spindle Feeds: (3) .00075, .0015 & .003 IPR
Spindle Motor: 2HP

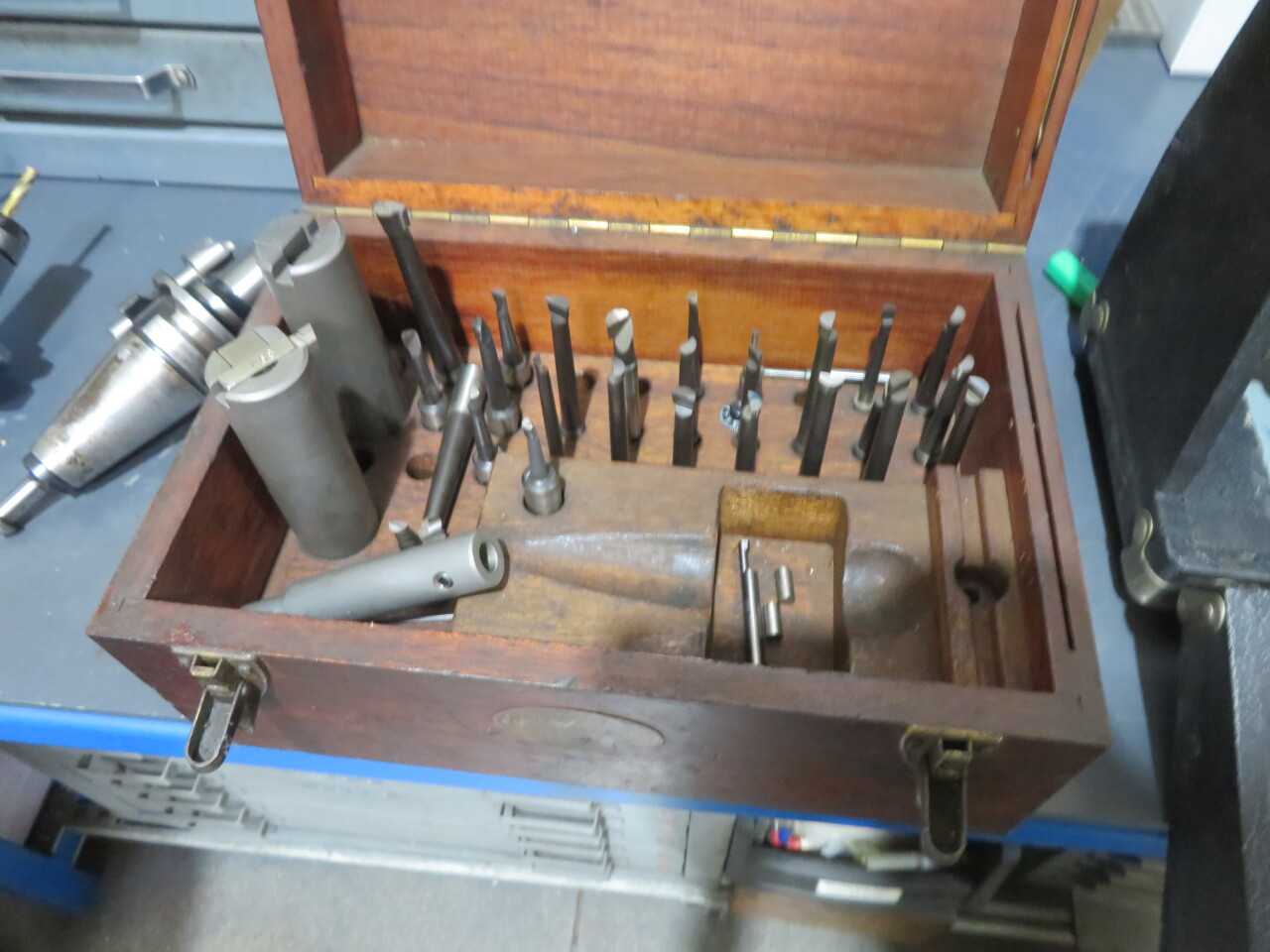

With all associated tooling except Sine plate in pictures. |
