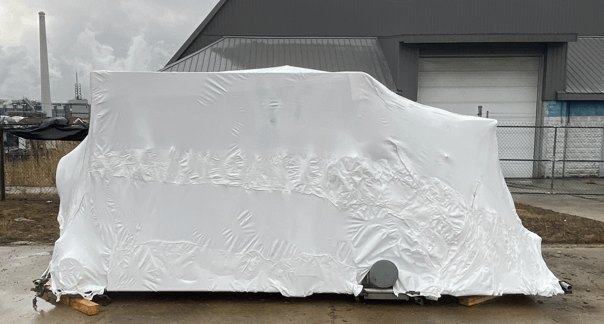

Name | SIEMENS 11,060 HP SYNCHRONOUS MOTOR |
---|---|
Aucto ID | 10002 |
Attachments | Dimension Drawing 0.0: Description 1.0: Description 2.0: Description 3.0: Description 4.0: Description 5.0: Description 6.0: Description 6.0: |
Additional Info | Condition: Good
MOTOR, ELECTRIC, 11,000 HP, LCI SYNCHORONOUS WITH BRUSHLESS EXCITER
FOR LCI-CONVERTOR OPERATION.

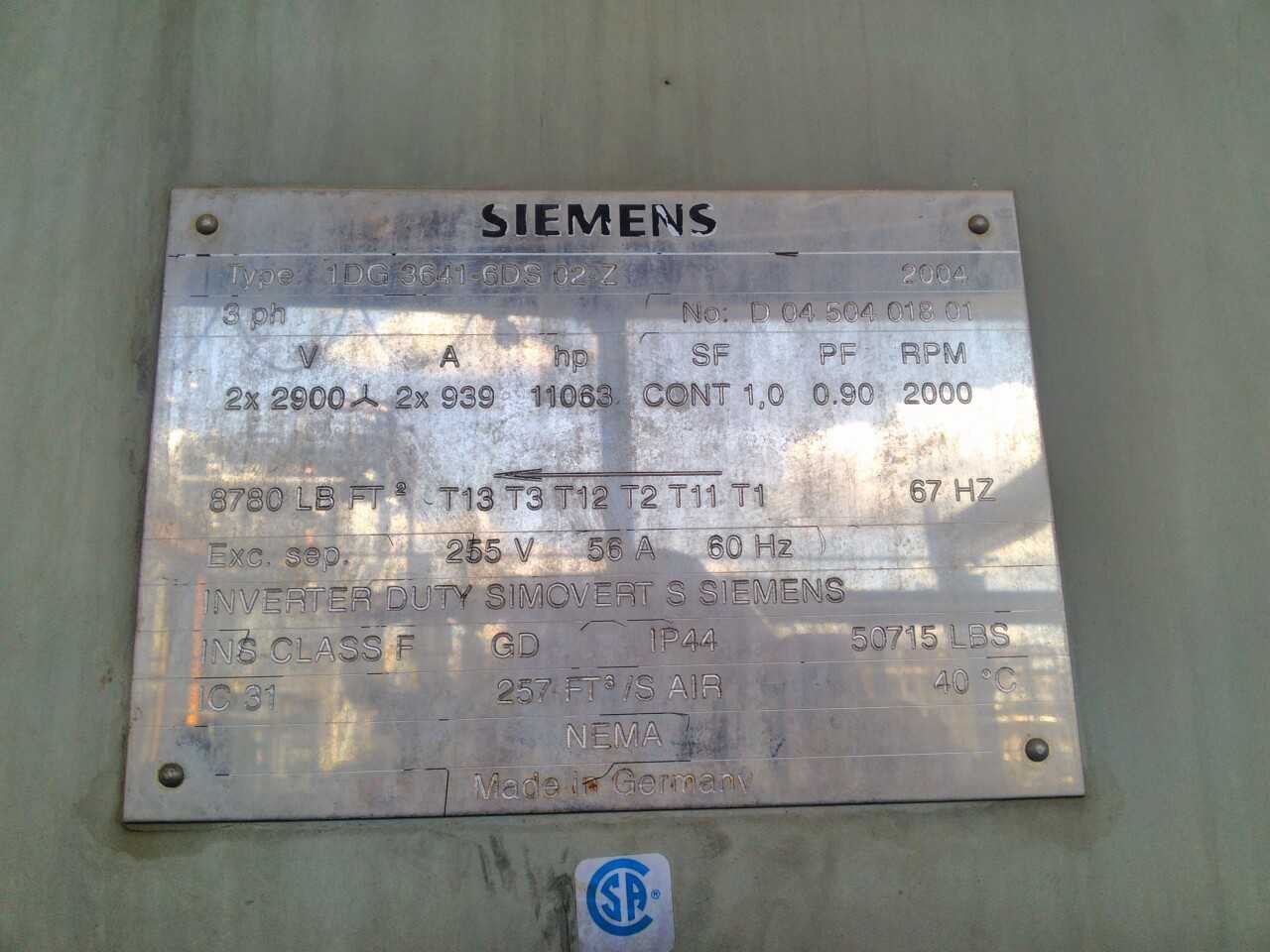

RATED POWER: 11,060HP, 8.25MW
RATED SPEED: 2000RPM
RATED VOLTAGE: 2 x 2.9kV
RATED CURRENT: 2 x 939A
RATED FREQUENCY: 66.6Hz
EFFICIENCY: 97.2%
MOMENT OF INERTIA: 0.37 tm2
COOLING: IC31
COOLING AIR TEMP.: 40¦C
COOLING AIR FLOW: 6.2m3/sec
BEARINGS: 2 SLEEVE BEARINGS WITH OIL RING AND FORCED
LUBRICATION
OIL QUANTITY: 11 L/min FOR 2 BEARINGS (@Temperature Rise T=15K)
WEIGHT: 22500kg
WEIGHT OF ROTOR: 7150kg
DIMENSIONS: (L x H x W) 4917.5mm x 2100mm x 2380mm
SHAFT HEIGHT: 1000mm
ACCESSORIES:
12 Stator Winding RTD's
2 Bearing RTD's
3 Cooling Air RTD's
2 Bently Nevada Vibration Probes per Bearing (assembling only)
Anti-condensation Heater
Noise Reduction inside the Motor Enclosure
No Earth Connection
MOTOR IS OF NEW CURRENT DESIGN AND IS MECHANICALLY INTERCHANGEABLE
WITH THE EXISTING MOTORS TYPE 1DQ3739-7FF02-Z SERIAL NOS. 80162017 & 80162018 |
