Hydraulic Power Unit and AC Induction Motors from National Oilwell Varco
Live Auction
auction
Verified Seller
Auction Lot Ended
Name | Unused NOV Hydraulic Power Unit 3000Psi variable Dual Electric and Diesel pumps |
---|---|
Aucto ID | 1 |
Manufacturer | NOV |
Model | HE-100 |
Year of Manufacture | 2015 |

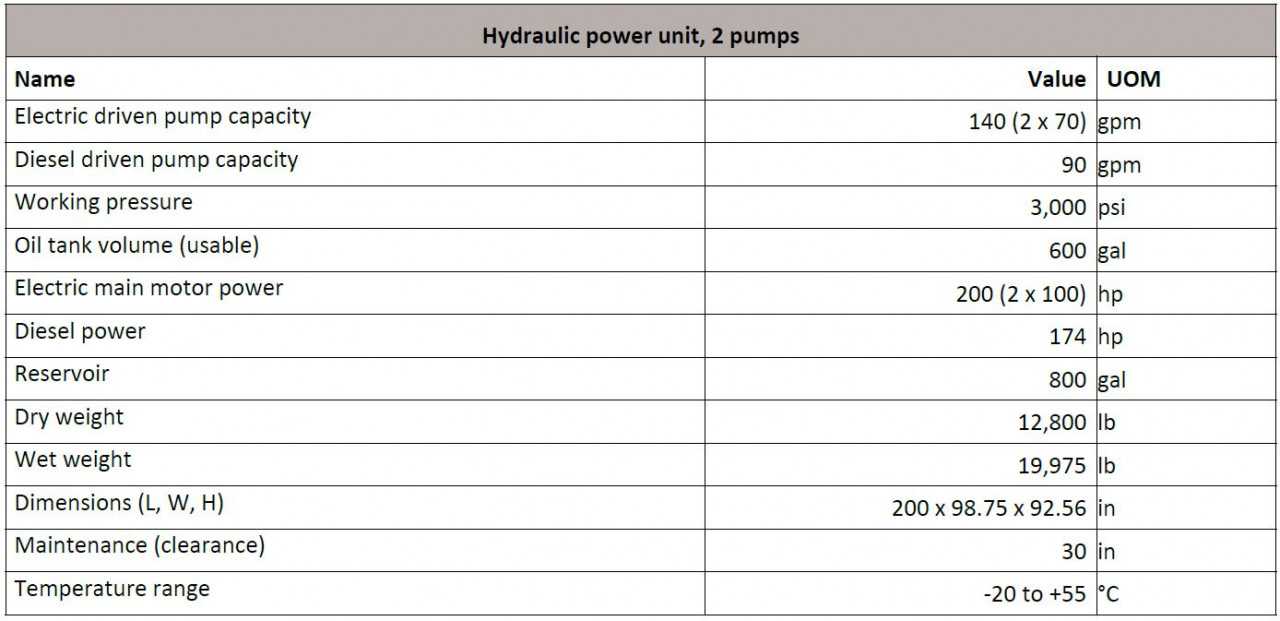

Additional Info | 2 x 100HP electric motors- 3000psi, 800Gal reservoir tank, 140gpm Electric pump capacity, 90 gpm diesel driven pump capacity. 460V/60Hz; Non-ATEX / Non-CE Certified; 3 Pumps; Temperature rating 32F to 122F / 0C to 50C (Desert); Adjustable Pressure - Adjustable Flow;

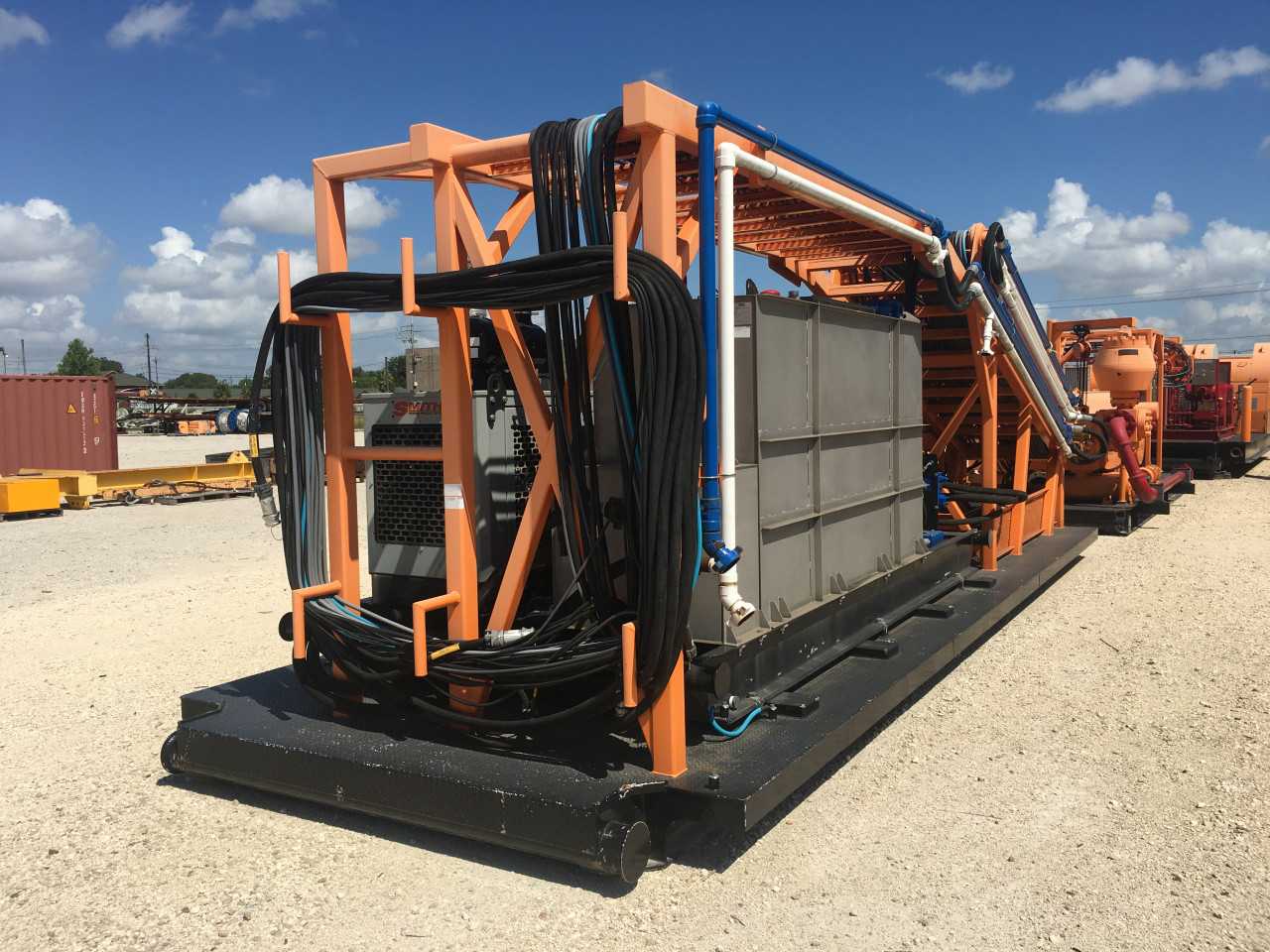

The Hydraulic Power Unit is a skid mounted free-standing unit designed to feed high-pressure hydraulic oil with acceptable cleanness to the vessel ring line system and applicable drilling equipment
Hydraulic Power Unit Skid
The hydraulic power unit skid is a self-bearing steel frame designed for bolting or welding to the deck and includes four lifting brackets for handling. This design eases installation and handling of the unit. A drip pan is located on the bottom of the frame to prevent spill of leak oil and hazardous drainage
Oil Tank
The hydraulic oil tank is made of stainless steel and operates at atmospheric pressure. Oil received from the return line is fed into the tank and it provides oil to the circulation pumps and high pressure pumps. The tank is equipped with various instrumentation and filters for monitoring and ensuring proper performance of the hydraulic power unit. Main components installed onto the tank are breather filters, return filter, heater, instrumentation such as temperature, level switch and inspection hatch.
High-pressure pumps
The high-pressure pumps are of axial piston pump type with swashplate. The pump displacement is regulated by a hydraulic pressure control valve ensuring proper oil flow and pressure. Each pump may be isolated from the tank and system ensuring ease of maintenance.
Circulation Circuit
The circulation circuit provides cooling and filtration of the hydraulic oil.
Cooler Unit
The coolers air-cooled transfer the heat from the unit and ensure sufficient oil temperature.
Filter System
The unit is equipped with filling filter, return filters, circulation filters, and high-pressure filters ensuring sufficient cleanness of oil delivered to the ring line system. There is one high-pressure filter for each high-pressure pump. There is a circulation filter downstream from heat exchangers for keeping hydraulic fluid clean. The filters are equipped with a monitoring indicator. Oil samples may be tapped from separate ports for 3rd party oil quality test. |
