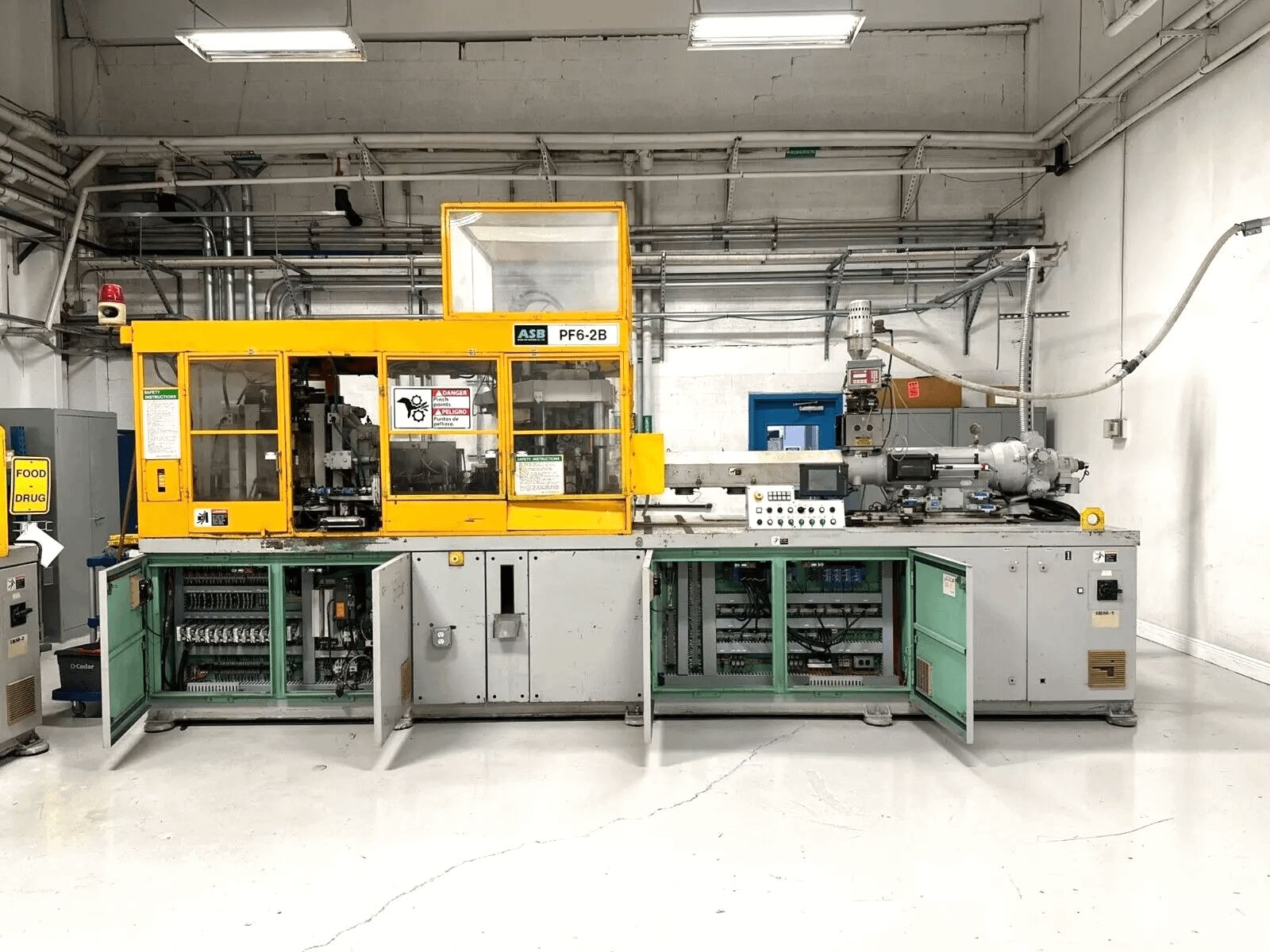

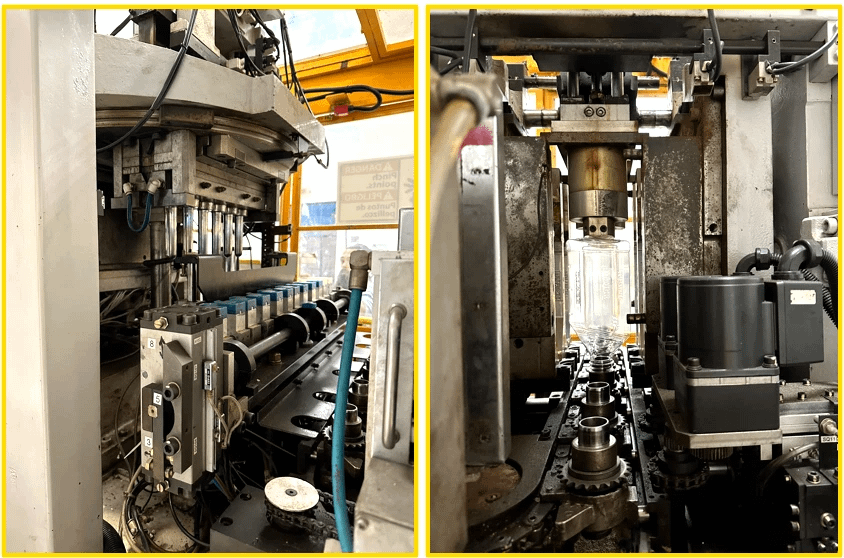

2002 NISSEI ASB PF6-2B V3 INJECTION STRETCH BLOW MOLDING MACHINE

NISSEI ASB PF6-2B V3 INJECTION STRETCH BLOW MOULDING MACHINES FOR PET BOTTLES COMES WITH 2 COMPLETE SETS OF MOLDS TECHNICAL SPECIFICATIONS: CONTAINER SIZE (MAX.): UP TO 3 LITE NUMBER OF CAVITIES (BLOW): 2 NUMBER OF CAVITIES (INJECTION): 6 MOTOR 460 VOLTS – 30 KW 220 VOLTS – 4 KW 60 HZ HEATER 460 VOLTS – 14 KW 220 VOLTS – 7.1 KW 220 VOLTS - 16 KW - VERSION 4 MACHINE - THEORETICAL INJECTION CAPACITY- 515 CUBIC C.M. - SCREW DIAMETER- 63 MM - CAVITY NUMBER (PREFORM)- 6 - CAVITY NUMBER (BOTTLE)- 2 - MAXIMUM PRODUCT CAPACITY- UP 3 LITERS - MAXIMUM NECK FINISH DIAMETER- 45 MM - MAXIMUM INLET OUTER DIAMETER- 42 MM - MAXIMUM SUPPORT RING DIAMETER- 48 MM - MAXIMUM PRODUCT OUTER DIAMETER- 120 MM - MAXIMUM PRODUCT HEIGHT- 350 MM - MAXIMUM PRODUCT WEIGHT- 73 GRAMS - PRODUCTION CAPACITY- APPROXIMATELY 1000 TO 2000 BOTTLES PER HOUR (DEPENDENT ON BOTTLE DESIGN) FOLLOWING MOLDS AVAILABLE: - PREFORM MOLD TO PRODUCE 28/400 NECK FINISH 40 GRAMS -PREFORM MOLD TO PRODUCE 28/400 NECK FINISH 50 GRAMS -ALSO A VARIETY OF BLOW MOLDS
