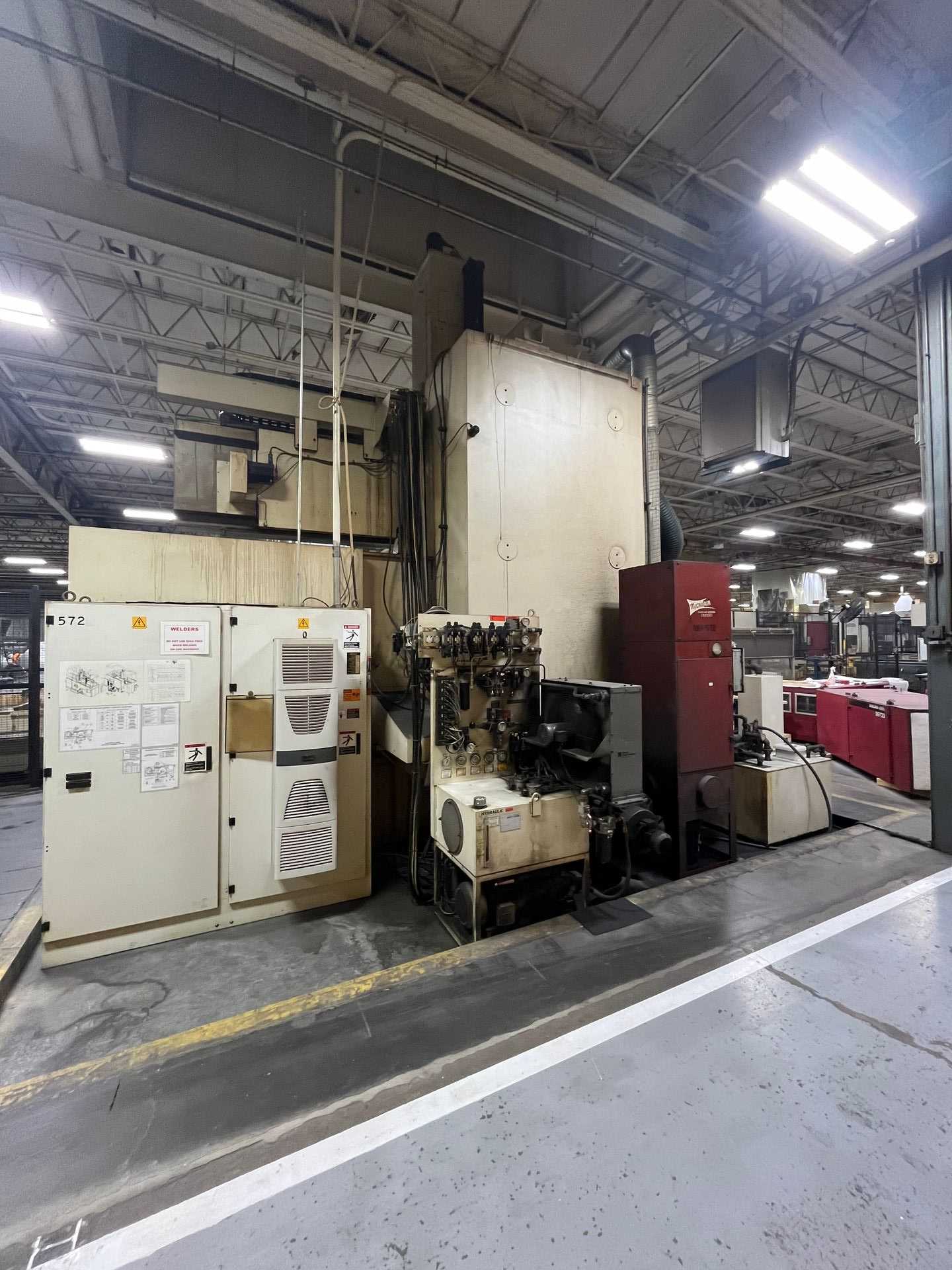

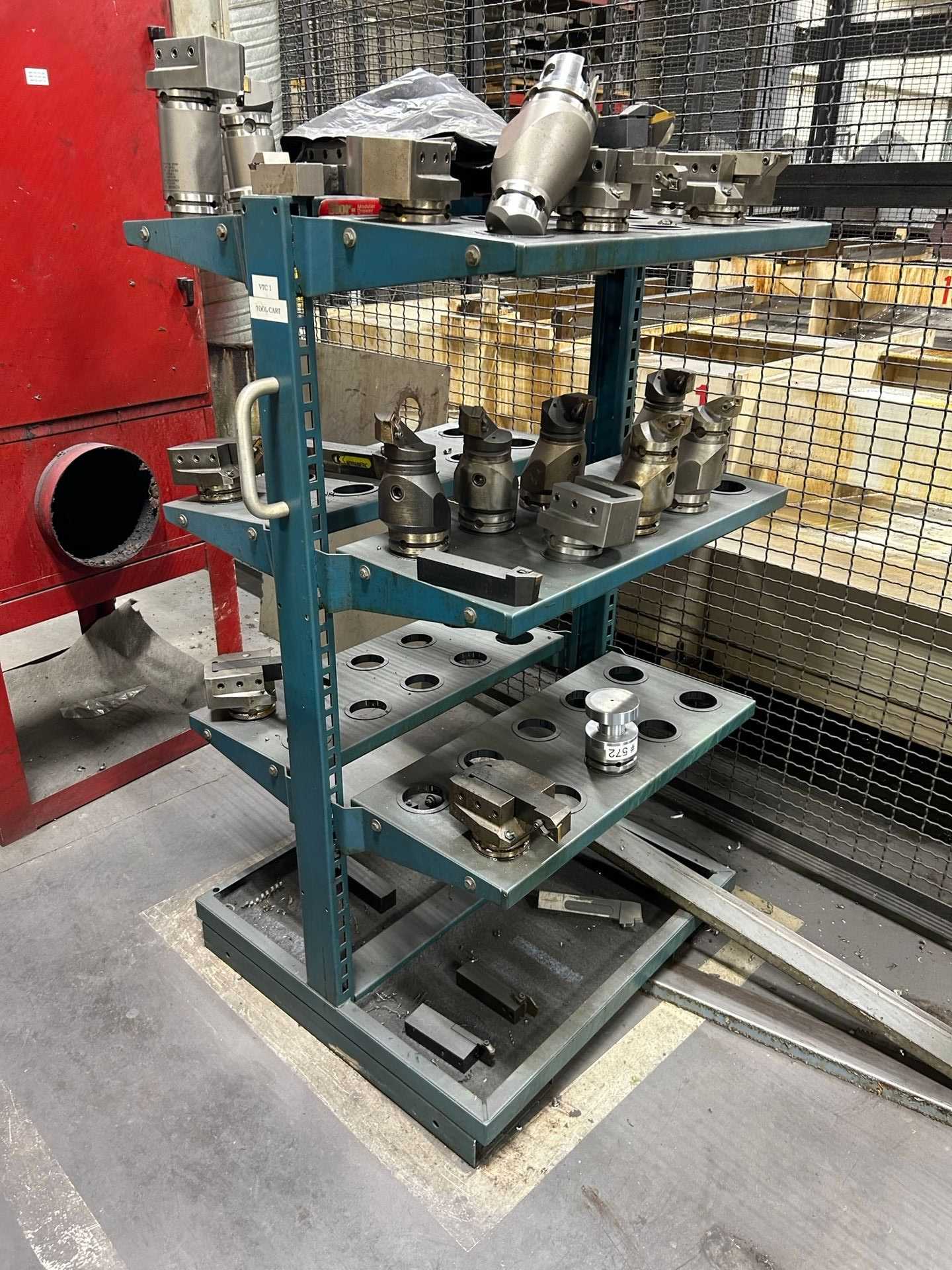

2005 Giddings & Lewis VTC 1600 w/ Fanuc 160i-TB Control W/ Tool Changer & Tool Holders
3710078
13049
ended
Surplus of Industrial Machines to the Ongoing Operations of Major Tool and Machine
Online Auction
auction
Verified Seller
Auction Lot Ended
Location:
Logistics:
Rigging:
Loading:
Shipping:
Preview
More Assets From This Auction
Description
Terms
| Name | 2005 Giddings & Lewis VTC 1600 w/ Fanuc 160i-TB Control W/ Tool Changer & Tool Holders |
|---|---|
| Aucto ID | 10008 |
| Manufacturer | Giddings & Lewis |
| Model | VTC 1600 |
| Year of Manufacture | 2005 |
| Additional Info | Condition: Good
Condition details: RUN TIME HOURS 1264.5
ASSESSMENT FROM 1/25/23
ZX CIRCULARITY 0.0007
ZX TRUE POS 0.0014
Capacities in mm.
Table Diameter 1600.
Max Facing Capacity 2000.
Max swing 2000.
Height table to ram (max) 1500.
Height table to ram (min) 1000.
Table Speeds.
Low Range 29-117 RPM.
Constant torque 1-29 RPM.
High Range 117-400.
Constant torque1-117.
C Axis Maximum RPM 5.
1750 mm ram travel (Z-Axis).
2420 mm Horizontal travel (X-Axis).
2165 mm max height under ram .
1165 mm min height under ram .
1000 mm rail travel (W-Axis ).
26 position vertical floor mounted tool changer .
2775mm high enclosure .
Feeds and Traverse.
Rapid traverse rate 20,000 mm/min .
Thrust X and Z 34,000 Nm.
Rail elevating rate 1760 mm/min .
WedgeLock Tools.
Maximum Tool Width: 410mm .
Maximum Tool Thickness/Diameter .
[Adjacent Pocket Occupied]: 203mm .
[Adjacent Pockets Empty]: 250mm .
Maximum Tool Length: 700mm .
Maximum Tool Weight: 115 kg .
Maximum Matrix Weight Capacity: 1500 kg .
6 positions Horizontal Drawer .
"KM" Modular Tools.
Maximum Tool Diameter .
[KM80]: 180mm .
[KM63]: 150mm .
Maximum Tool Length: 500mm .
Maximum Tool Weight: 18 kg .
Drawer For Horizontal "KM" Modular Tools for Right Angle Head.
Number of Tools: 6 (12).
Maximum Tool Diameter: 100mm .
[Maximum Tool Length: 300mm .
Maximum Tool Weight: 18 kg .
Drawer For WedgeLock Tools and Adaptors.
Number of Tools: 8 (4 per drawer).
Maximum tool thickness/diameter (adjacent pockets empty) 410 mm .
Maximum tool thickness/diameter (pockets 61 & 65) 220 mm .
Maximum tool thickness/diameter (pockets 62 & 66) 250 mm .
Maximum tool thickness/diameter (pockets 63 & 67) 240 mm .
Maximum left & right offset from center 205 mm .
Maximum Tool Length: 700mm.
Maximum Tool Weight [WedgeLock]: 115 kg .
Chip Conveyor .
Renishaw Probe /inspection software.
Heidenhain Scales .
Table Configuration Plain table with parallel T-slots, 12 equally.
spaced radial T-slots .
Table Drive.
S6-40% Rating:.
Continuous Rating:.
Two-Speed Transmission, 4:1 Gear Ratio.
100.6 hp .
75 hp.
Table Load Capacity (at maximum RPM) 38,000 lbs. |
