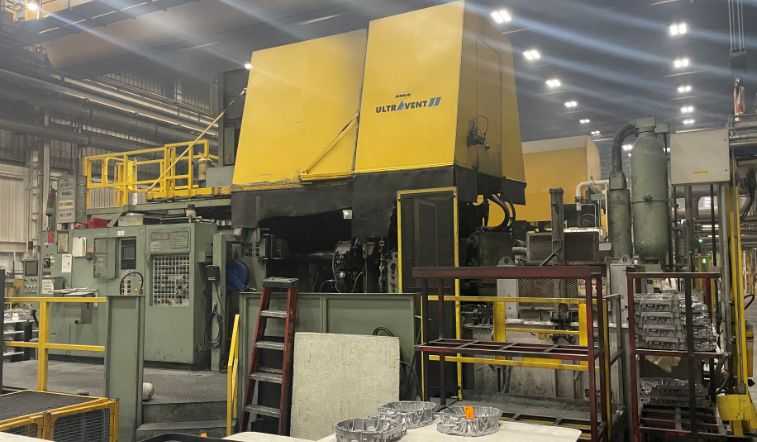

2005 TOSHIBA 800 TON HIGH PRESSURE DIE CAST LINE

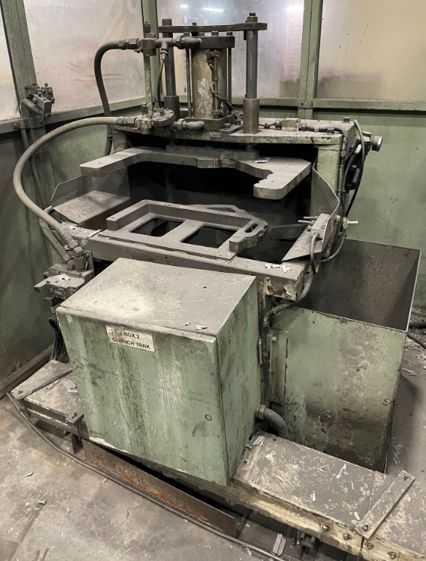

THE TOSHIBA 802 DIE CAST MACHINE IS A HIGH-PRESSURE DIE CASTING MACHINE USED FOR PRODUCING METAL PARTS BY FORCING MOLTEN METAL INTO A MOLD CAVITY UNDER HIGH PRESSURE. THIS PARTICULAR MODEL IS A COLD CHAMBER DIE CASTING MACHINE, WHICH IS TYPICALLY USED FOR CASTING METALS WITH HIGH MELTING POINTS, SUCH AS ALUMINUM AND MAGNESIUM. TOSHIBA 802 DIE CAST MACHINE2: RATED TONNAGE: 800 METRIC TONS PLATEN DIMENSIONS: 55.12 X 55.12 INCHES (1400 X 1400 MM) SPACE BETWEEN TIE BARS: 36.6 X 36.6 INCHES (930 X 930 MM) TIE BAR DIAMETER: 7.09 INCHES (180 MM) DIE STROKE: 29.9 INCHES (760 MM) DIE THICKNESS (MIN. - MAX.): 15.75 - 37.4 INCHES (400 - 950 MM) INJECTION FORCE: 67.24 - 26.46 TONS (61 - 24 TONS) MOTOR SIZE: 60.3 HP (45 KW) MACHINE WEIGHT: 43 TONS (39 TONS) THE MACHINE IS EQUIPPED WITH VARIOUS AUTOMATED FEATURES, SUCH AS AN AUTOMATIC LADLE, DIE SPRAYER, AND PARTS EXTRACTOR, MAKING IT SUITABLE FOR HIGH-VOLUME PRODUCTION THIS LINE INCLUDES: 1. 2017 KMA ULTRA VENT II 8000 SMOKE CONTAINMENT HOOD 2. 2005 SCHAEFER GROUP HTM14-0365 800 TON 2 VB DCM FURNACE 3. 2005 TOSHIBA DC800J-MS TRIM PRESS 4. NOTA OVERFLOW CUTTER BY SHIBAURA MACHINE COMPANY AMERICA
