2011 LIEBHERR R954BHDW EXCAVATOR MATERIAL HANDLER WITH BATEMAN MAGGRAB

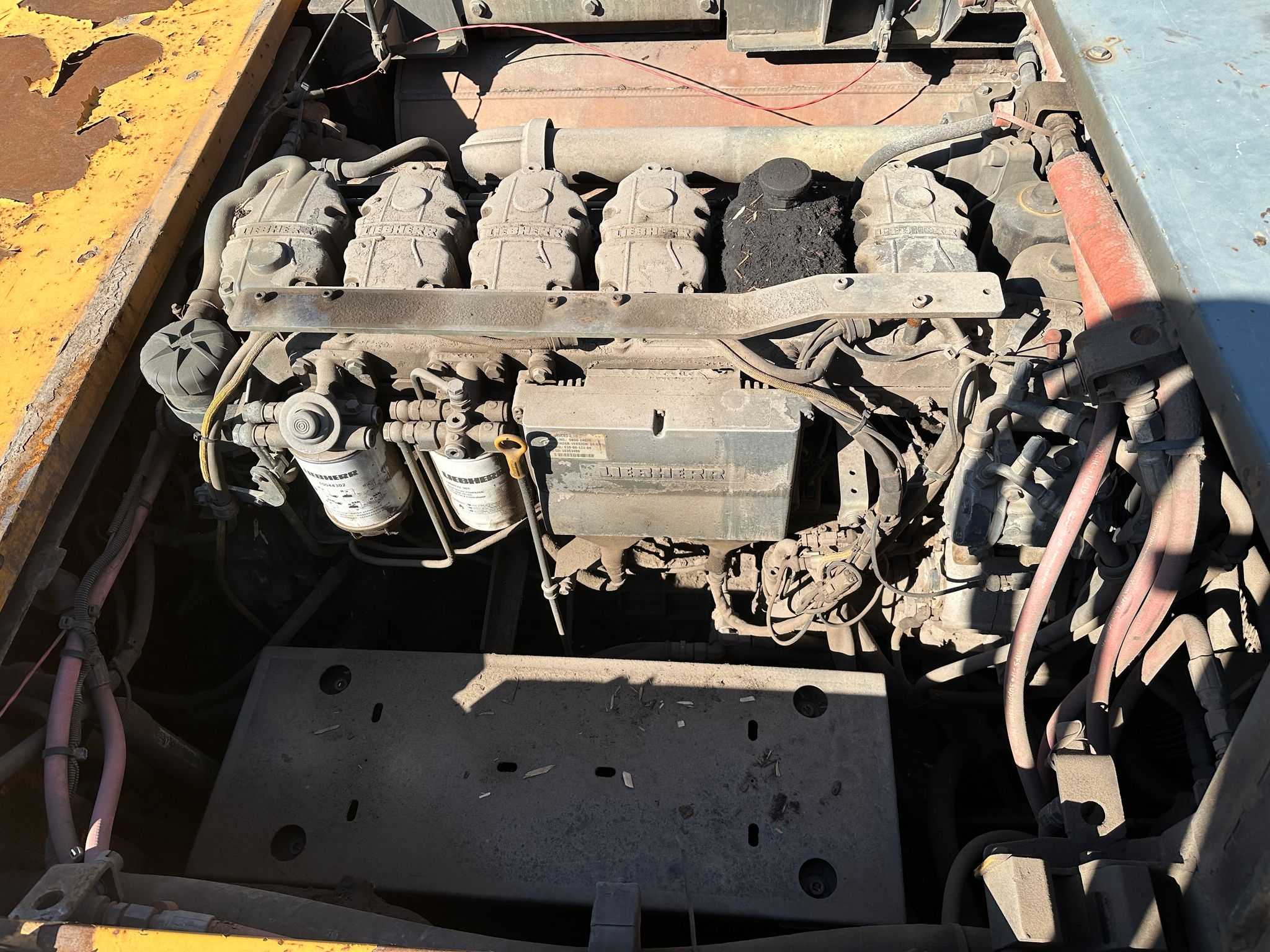

GENERAL SPECIFICATIONS: OPERATING WEIGHT: APPROXIMATELY 56.9 METRIC TONS (56,900 KG) ENGINE: LIEBHERR D926 TI-E TYPE: 6-CYLINDER, TURBOCHARGED, DIRECT INJECTION, AFTER-COOLED DISPLACEMENT: 10 LITERS POWER: 222 KW (APPROXIMATELY 297 HP) AT 2,000 RPM TRACK: TRIPLE GROUSER TRACK SHOES TRACK WIDTH: 750 MM TRACK CONDITION: NEW CAB: ENCLOSED CAB A/C 7 HEAT INTERFACE: CAN SCREEN CONTROL: 22’4” STICK BATEMAN MAGGRAB: BATEMAN - BMG16-150M40 MAGGRAB SERIES: 160 CAPACITY: 1.15 (CUBIC METERS) MAGNET DIAMETER: 40'' INCHES WEIGHT: 7750 LBS TIP TO TIP WIDTH: 124'' INCHES HEIGHT (OPEN TINES): 80'' INCHES HEIGHT (CLOSED TINES): 115'' INCHES OPERATIONAL CAPACITIES: FUEL TANK: 706 LITERS HYDRAULIC SYSTEM FLUID CAPACITY: 800 LITERS PERFORMANCE: MAXIMUM DIGGING DEPTH: 9 METERS MAXIMUM REACH: 9 METERS TEAR-OUT FORCE: 285 KN SWING MECHANISM: SWING SPEED: 6.2 RPM SWING TORQUE: 156,000 NM HYDRAULICS: PUMP TYPE: VARIABLE DISPLACEMENT SWASH PLATE PUMP CAPACITY: UP TO 700 L/MIN SYSTEM PRESSURE: 35,000 KPA OPERATING WEIGHT: APPROXIMATELY 52,000 KG
