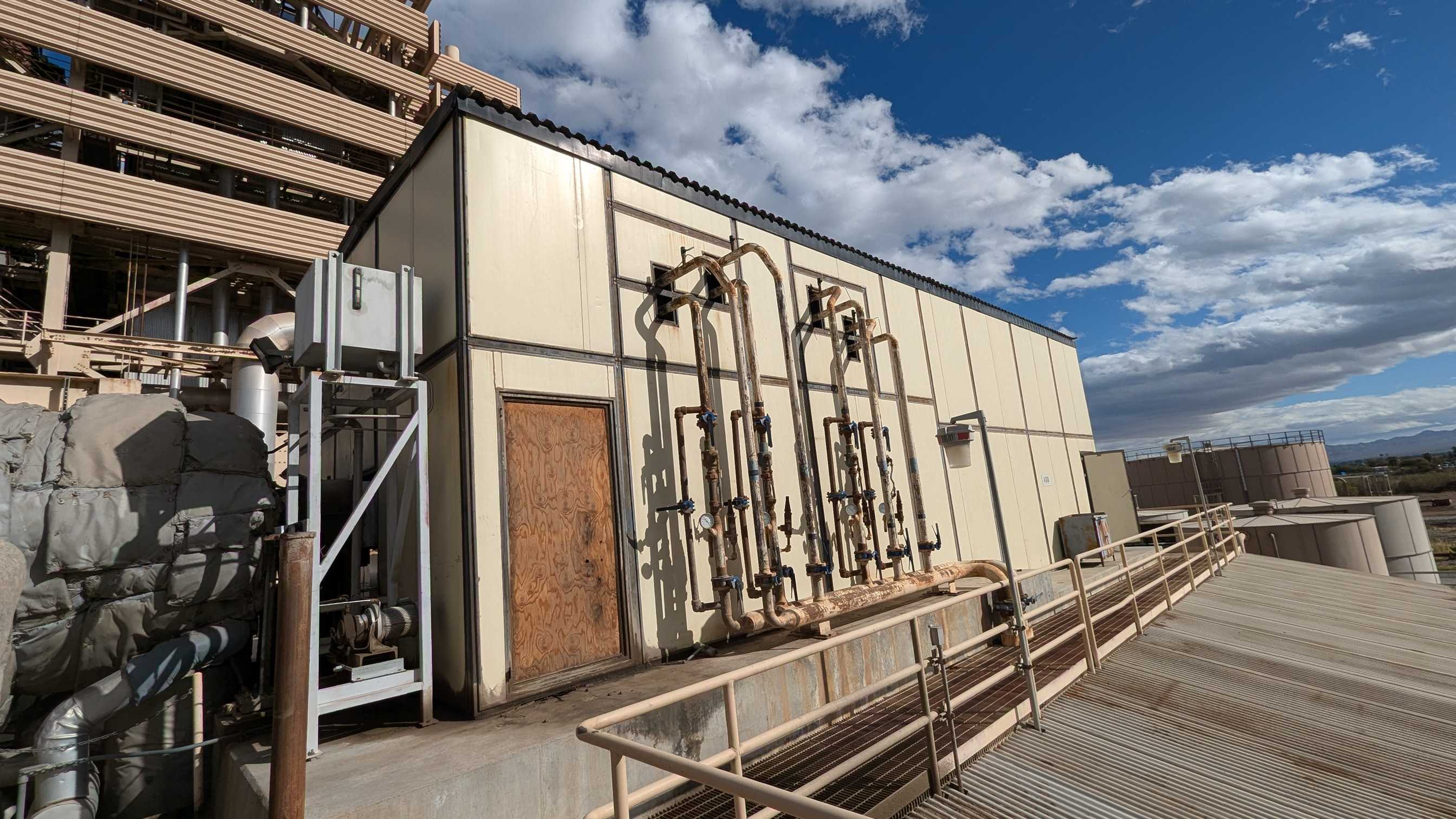

ABB HIGH PRESSURE TURBINE SYSTEM WITH 45 MVA GENERATOR

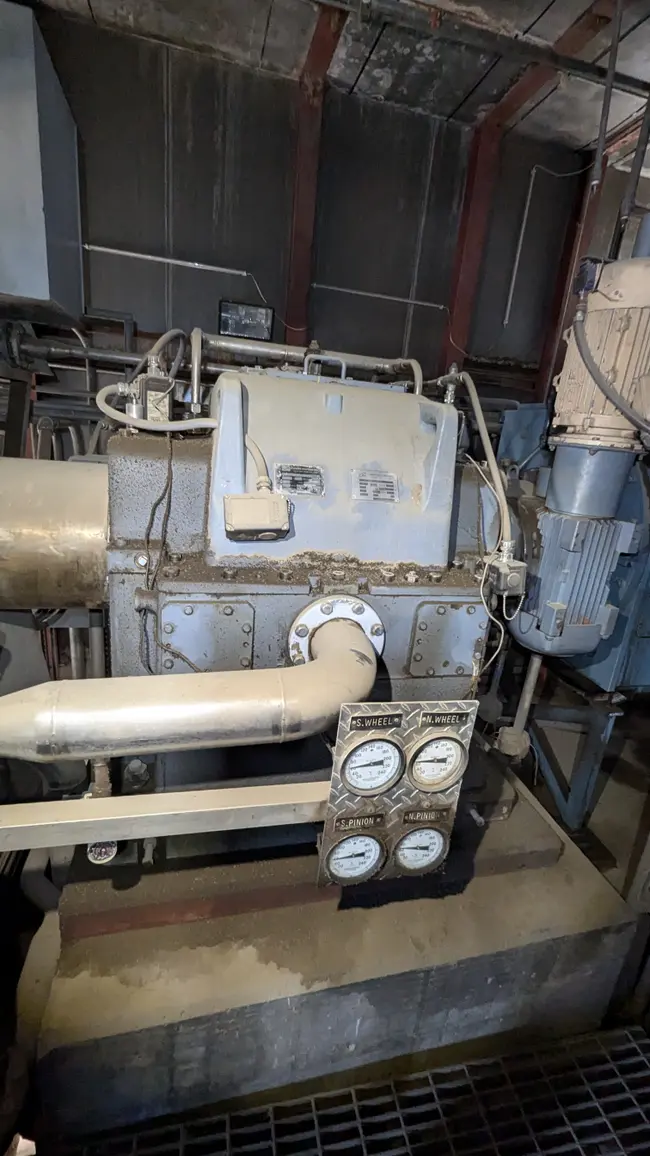

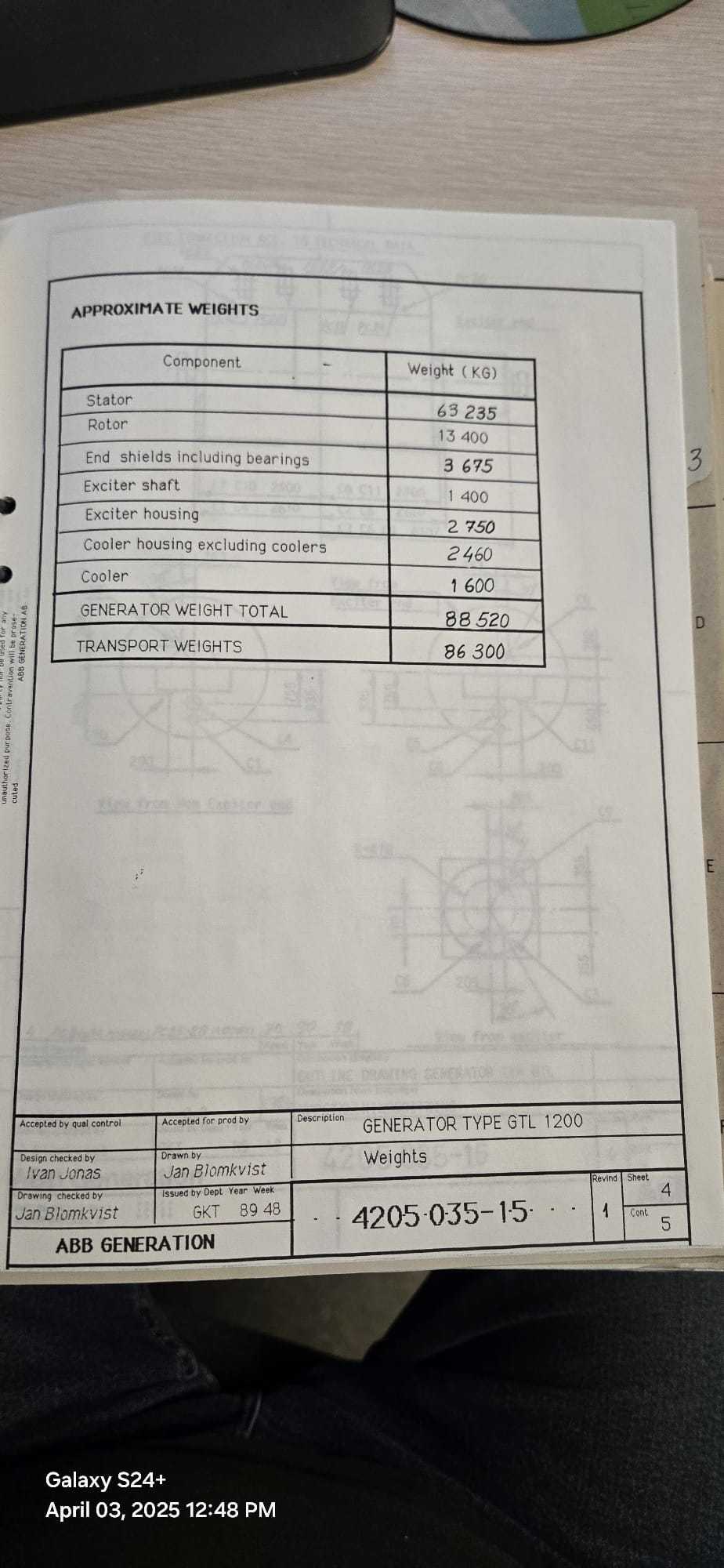

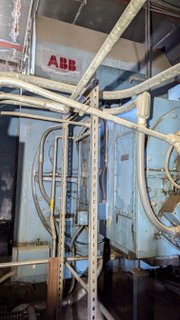

TURBINE MODEL: VAX HT25/LT25 (ABB) GENERATOR MODEL: GTL 1200EP (ABB) GENERATOR CAPACITY: 45 MVA RATED OUTPUT POWER: 54,150 KW TURBINE SPECIFICATIONS: INLET PRESSURE: 1,235 PSIG INLET TEMPERATURE: 920°F HIGH-PRESSURE (HP) TURBINE RATED SPEED: 7,629 RPM LOW-PRESSURE (LP) TURBINE RATED SPEED: 3,600 RPM TURBINE GEARBOX : GRAFFENSTADEN TRL 50 (FLENDER-GRAFFENSTADEN) GEARBOX POWER: 27,500 KW GEARBOX SPEED RATIO: 2.1 OIL FLOW: 620 L/MIN OIL INLET PRESSURE: 15 BAR SERVICE FACTOR: 11 GEARBOX WEIGHT: 5,800 KG GENERATOR SPECIFICATIONS: RATED SPEED: 3,600 RPM CONFIGURATION: HIGH-PRESSURE AND LOW-PRESSURE TURBINE SECTIONS WITH A GRAFFENSTADEN TRL50 GEARBOX TO MATCH TURBINE SPEED WITH GENERATOR SPEED. APPLICATION: DESIGNED FOR LARGE-SCALE POWER PLANTS TO CONVERT HIGH-TEMPERATURE STEAM INTO ELECTRICITY AND UTILIZE EXHAUST STEAM FROM GAS TURBINES FOR ADDITIONAL POWER GENERATION.
