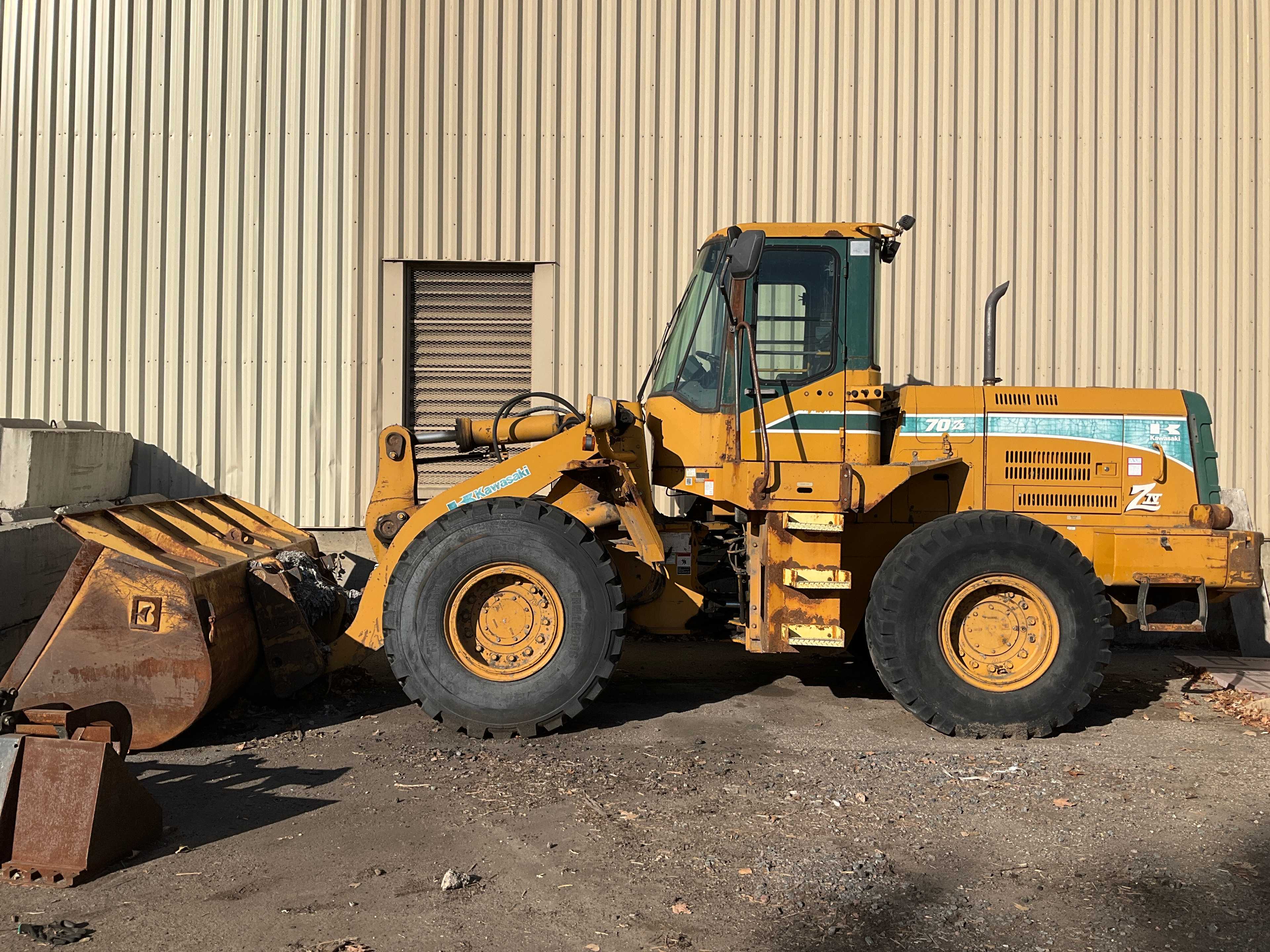

KAWASAKI 70ZIV WHEEL LOADER

CONDITION: NON FUNCTIONAL ---- CATEGORY:  WHEEL LOADERS MANUFACTURER:  KAWASAKI MODEL:  70ZIV BUCKET BREAKOUT FORCE 27775 LBS (12,599 KG) BUCKET CAPACITY - HEAPED 3.3 CU YDS (2 M) BUCKET CAPACITY - STRUCK 2.8 CU YDS (2 M) BUCKET WIDTH 8.8 FT (2 M) DUMP CLEARANCE AT MAX RAISE 8.9 FT (2 M) DIMENSIONS GROUND CLEARANCE 1.4 FT (0 M) HEIGHT - TOP OF CAB 11 FT (3 M) HINGE PIN - MAX HEIGHT 12.5 FT (4 M) LENGTH WITH BUCKET ON GROUND 24.5 FT (7 M) REACH AT MAX LIFT AND DUMP 3.7 FT (1 M) WHEELBASE 10.1 FT (3 M) WIDTH OVER TIRES 8.5 FT (2 M) ENGINE ASPIRATION TURBOCHARGED & AFTER COOLED DISPLACEMENT 359 CU IN (0 M) ENGINE MODEL B5.9-C NET POWER 160 HP (119 KW) NUMBER OF CYLINDERS 6 POWER MEASURED @ 2400 RPM TORQUE MEASURED @ 1500 RPM HYDRAULIC SYSTEM DUMP TIME 1.2 SEC LOWER TIME 3.1 SEC PUMP FLOW CAPACITY 13 GAL/MIN (49 L/MIN) PUMP TYPE GEAR TYPE RAISE TIME 6.2 SEC RELIEF VALVE SETTING 3000 PSI OPERATING SPECIFICATIONS ALTERNATOR SUPPLIED AMPERAGE 65 A COOLING SYSTEM FLUID CAPACITY 9.8 GAL (34 L) ENGINE OIL FLUID CAPACITY 3.7 GAL (11 L) FRONT AXLE/DIFF FLUID CAPACITY 12.7 GAL (45 L) FUEL CAPACITY 58.2 GAL (220 L) HYDRAULIC SYSTEM FLUID CAPACITY 45 GAL (170 L) OPERATING VOLTAGE 24 V V OPERATING WEIGHT 28527.9 LBS (12,940 KG) REAR AXLE OSCILLATION 24 ° REAR AXLE/DIFF FLUID CAPACITY 13.5 GAL (49 L) STATIC TIPPING WEIGHT 22024.2 LBS (9,990 KG) TIRE SIZE 20.5X25-12PR (L-2) TRANSMISSION FLUID CAPACITY 8 GAL (30 L) TURNING RADIUS 19.9 FT (6 M) TRANSMISSION MAX SPEED - FORWARD 23 MPH (37 KPH) MAX SPEED - REVERSE 23 MPH (37 KPH) NUMBER OF FORWARD GEARS 4 NUMBER OF REVERSE GEARS 4 TRANSMISSION TYPE FULL POWERSHIFT
