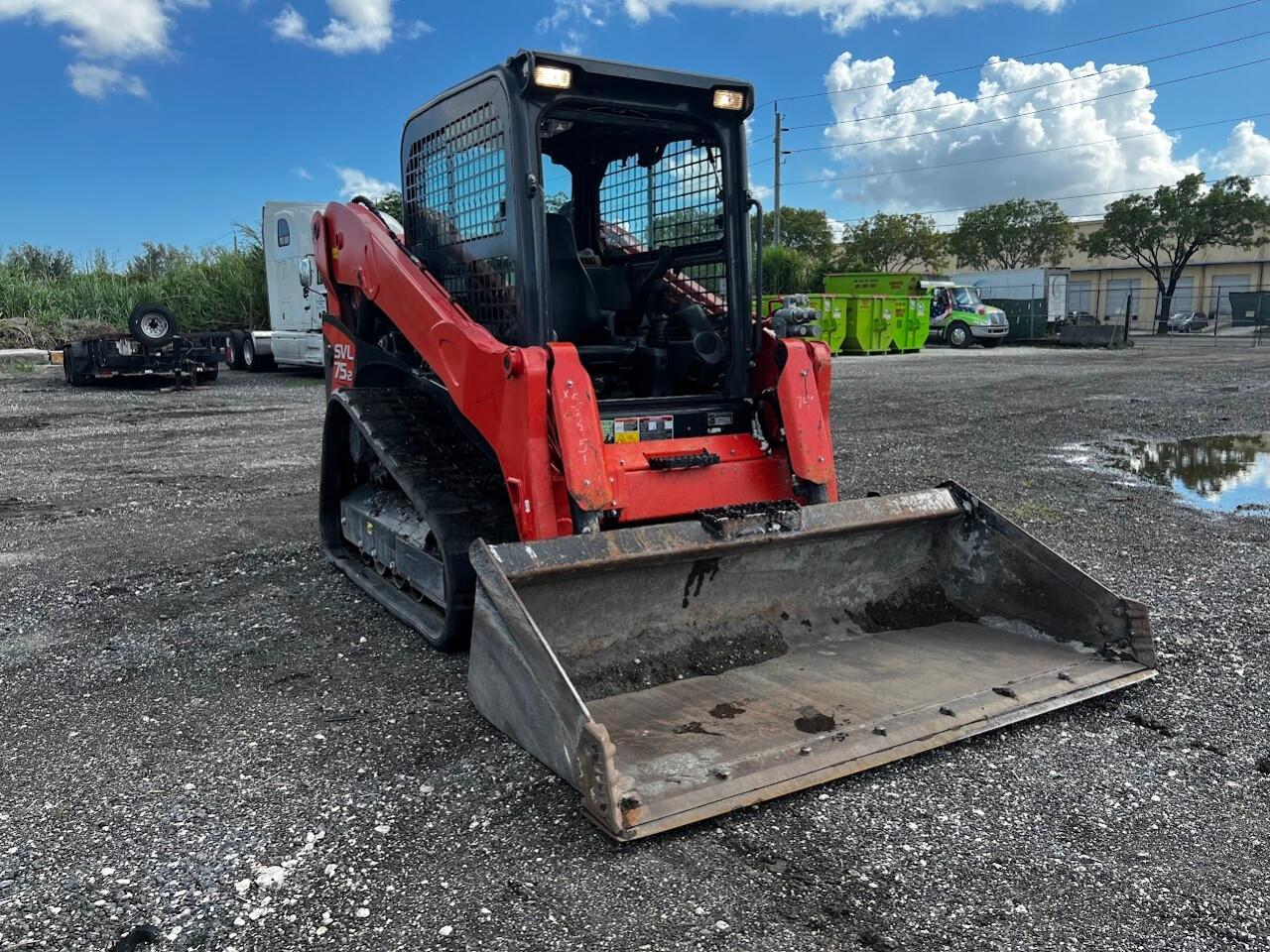

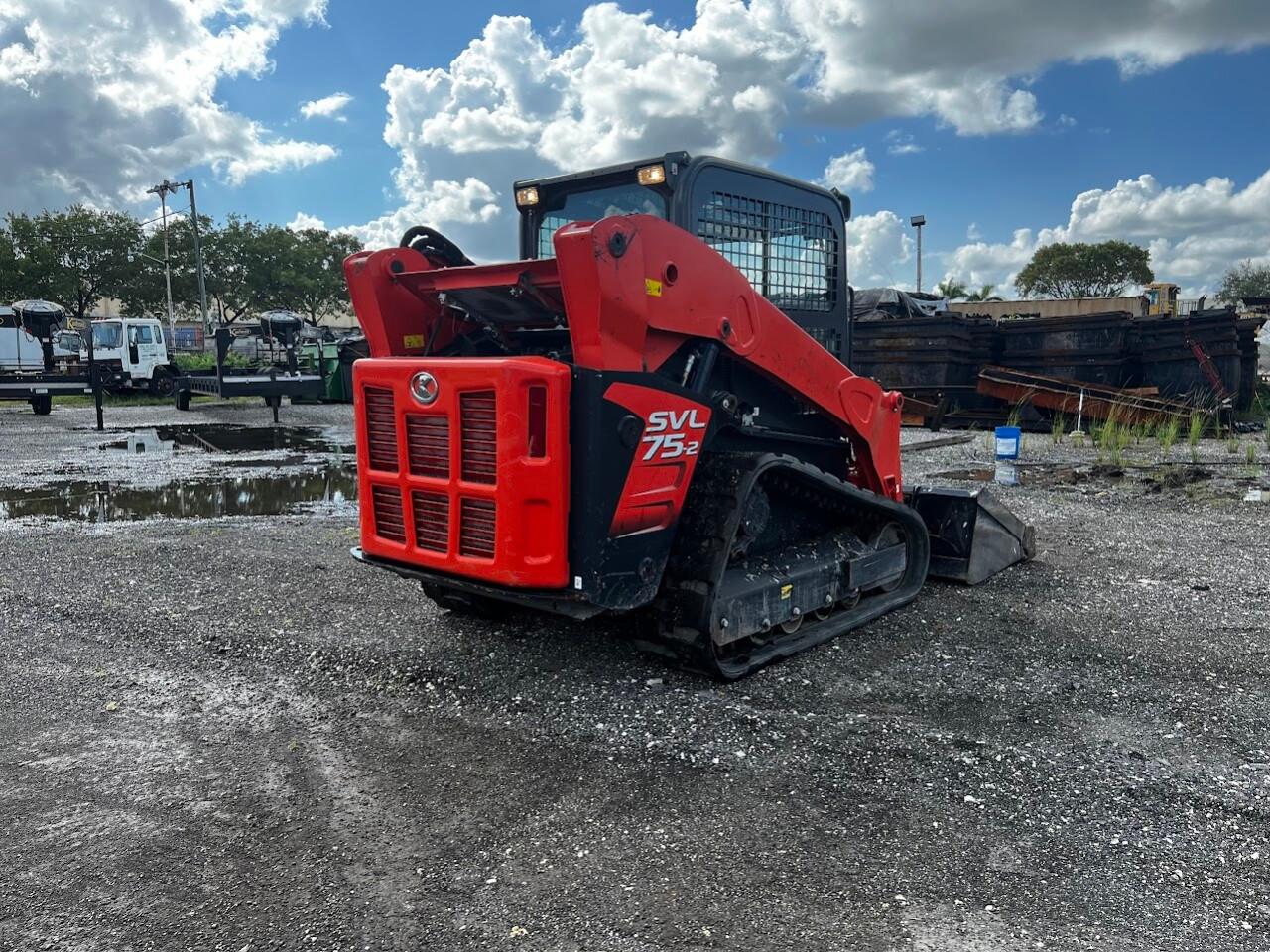

Kubota Compact Track Loader Model SV75-2

KUBOTA COMPACT TRACK LOADER MODEL SV75-2 (SPECIFICATIONS SHEET AND INSTRUCTION MANUALS ATTACHED) HOURS: 484.9 IDENTIFICATION# KBCZ052CPL1C49256 ENGINE# 8LC3524 VERTICAL LIFT, HIGH FLOW HYDRAULICS WITH 14 PIN CONNECTOR, TWO SPEED TRAVEL WITH ELECTRONIC TORQUE MANAGEMENT, MAIN FRAME AND UNDERCARRIAGE. ENGINE: ASPIRATION: TURBOCHARGED BORE: 3.7 IN / 94 MM STROKE: 4.72 IN / 120 MM RATED ENGINE SPEED: 2400 RPM / 2400 RPM ENGINE GROSS HORSEPOWER @ RPM: 74.3 HP / 55.4 KW ENGINE NET HORSEPOWER @ RPM: 73.2 HP / 54.6 KW DISPLACEMENT: 203.3 CU. IN. / 3331 CC MODEL NAME: V3307-CR-TE4 CYLINDERS: 4 DIMENSIONS AND WEIGHT: GROUND CLEARANCE: 11.7 IN / 296 MM OPERATING WEIGHT: 8874 LB / 4025 KG TRACK WIDTH: STANDARD 15 IN / 380 MM FLUID CAPACITIES: FUEL TANK CAPACITY: 24.6 GAL / 93 L HYDRAULIC TANK: 9.2 GAL / 35 L HYDRAULIC SYSTEM CAPACITY: 15.9 GAL / 60 L TRAVEL SPEED: LOW: 4.7 MPH / 7.5 KM/H HIGH: 7.1 MPH / 11.5 KM/H MAXIMUM TRACTION FORCE: 9678 LBF / 4390 KGF TRACK ROLLERS (PER SIDE): 4 GROUND CONTACT PRESSURE: STANDARD 4.7 PSI / 0.33 KG/CM2 LIFTING SPECIFICATIONS: TIPPING LOAD. STRAIGHT: 6570 LB / 2980 KG LIFT ARM PATH: VERTICAL BREAKOUT FORCE: BUCKET - 6204 LBF / 2814 KGF LIFT ARM: 4766 LBF / 2162 KGF RATED OPERATING CAPACITY (SAE): TIPPING LOAD. 35% - 2300 LB / 1043 KG HYDRAULIC SYSTEM: AUXILIARY HYDRAULIC FLOW: STANDARD - 17.4 GPM / 66 L/MIN HIGH: 29.3 GPM / 110.9 L/MIN AUXILIARY HYDRAULIC PRESSURE: 3185 PSI / 224 KG/CM2
