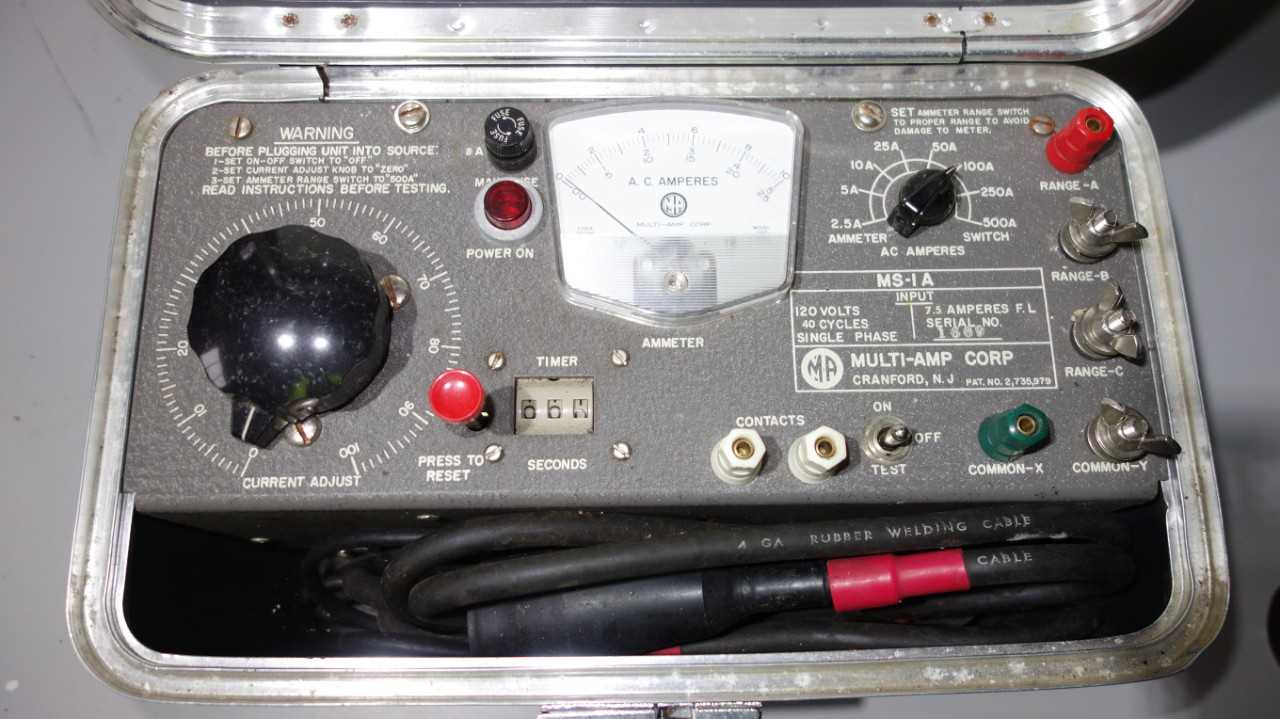

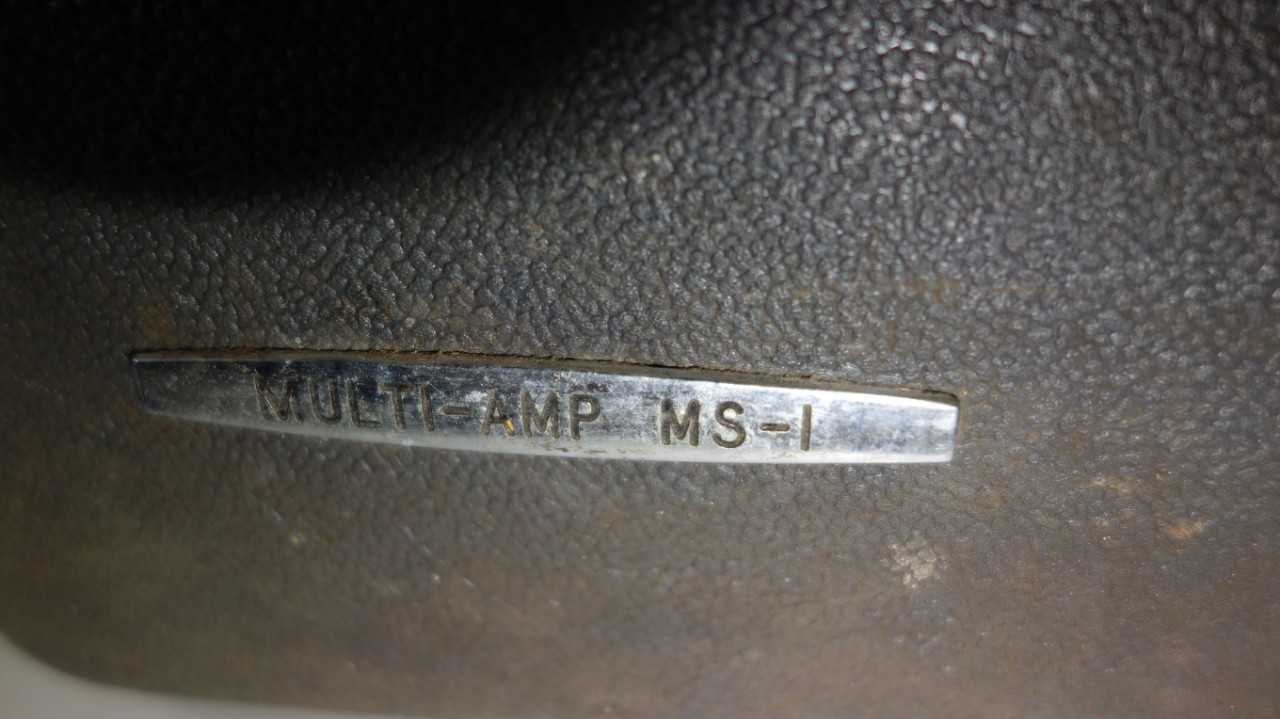

MULTI-AMP MS-1A CIRCUIT BREAKER OVERLOAD RELAY TEST SET

Used MULTI-AMP MS-1A OVERLOAD RELAY CIRCUIT BREAKER TEST SET Rating 0.6 kVA Input 120 volts, 60 hertz*, single phase Output: Continuously adjustable in four ranges lo meet a variety of test circuit impedances: 0 - 140 volts at 4.5 amperes 0 - 24 volts at 25 amperes 0 6 volts at 100 amperes 0 - 3 volts at 200 amperes Ammeter A large, easily read instrument with 3½ inch scale: Scales: 5110/25 Ranges (switch selected): 0-2.5/5/10/25/50/100/250/500 amperes Timer A synchronous motor-driven digital mechanism accurate to ± 0.5* second. Measures elapsed time of the test from 0.1 second to 9999.9** seconds. Push-button reset. Housing Molded public, high strength suitcase type enclosure with easy to carry handle. Storage space is provided for test leads. Dimensions Height: 9 inches; Width: 14½ inches; Depth: 9 inches Weight Net: 35 pounds; Shipping: 42 pounds Test Leads Two No. 22 timer leads each 5 feel long. These leads are used to connect the binding posts on the MS-1A labeled CONTACTS to the contacts of the device under test which will open when the device trips. Two No. 4 high current lead., each 5 feet long. These cables are used to connect the output terminals of the MS-1A to the current element of the device under test. 42lbs shipping weight Asset owner: Formerly Great Northern Paper as owned by Our Katahdin
